SPEAG offers phantom packages that are optimized for testing the over-the-air (OTA) performance of handheld devices inside compact antenna test ranges (CATR) at frequencies above 6 GHz. The phantoms fit into any quiet zone of 300 mm or larger and the mounting fixture is compatible with most CATR turntables.

Note that the mmW-phantoms summarized on this page are under evaluation by CTIA. A vast majority of mmW-phantoms is already fully compliant with CTIA certification standard "Test Plan for Wireless Device Over-the-Air Performance" for all defined test frequencies above 3 GHz. Precise information about compliance can be found under detailed specifications of each phantom.

CTIA COMPLIANT (up to 6GHz)

mmWave Ultra Wide PDA SHO Right/Left Hand Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of ultra wide mobile phone devices at millimeter-wave frequency range

Detailed specifications: mmW-UWPDA-SHO-R/LV6

mmWave PDA mobile phone SHO Right/Left Hand Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of PDA mobile phone devices

Detailed specifications: mmW-PDA-SHO-R/LV6

mmWave BRick Phone SHO Right/Left Hand Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of brick mobile phone devices at millimeter-wave frequency range

Detailed specifications: mmW-BR-SHO-R/LV6

mmWave Clam Shell phone SHO Right/Left Hand Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of clam shell mobile phone devices at millimeter-wave frequency range

Detailed specifications: mmW-CS-SHO-R/LV6

mmWave Data Mode SHO Right/Left Hand Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of narrow mobile phone devices with width below 56mm in data mode (hand-only testing) at millimeter-wave frequency range

Detailed specifications: mmW-DM-SHO-R/LV6

blockss

mmWave Generic Forearm Phantom CTIA Version 1

Generic forearm phantom for evaluating and optimizing the OTA performance of wireless wrist-worn devices

Detailed specifications: mmW-GFPC-V1

SAM-V4.5BS

Lightweight homogeneous anthropomorphic head phantom filled with a broadband head tissue simulating gel for OTA evaluation and optimization of mobile phone devices

Fully compliant with CTIA Certification Standard “Test Plan for Wireless Device Over-the-Air Performance”  over the entire frequency range (0.3 – 6GHz)

Detailed specifications: SAM-V4.5BS

CTIA UNDER EVALUATION

half head01 web

mmW-½SAMR/L V11 Packages

Anthropomorphic half head phantom for evaluating the OTA performance of mobile phones and other wireless ear-worn devices operating from 6 GHz to >100 GHz

Detailed specifications: mmW-½SAMR/L-V11

1912 holder holder mask side3

mmW-SAM-V10 Head Phantom Package

Anthropomorphic head phantom for evaluating the OTA performance of mobile phones, wireless ear-worn devices, smart glasses/goggles, new generation virtual reality headsets and other face- and head-worn devices (in vertical position only)

Detailed specifications: mmW-SAM-V10

mmWave hands s

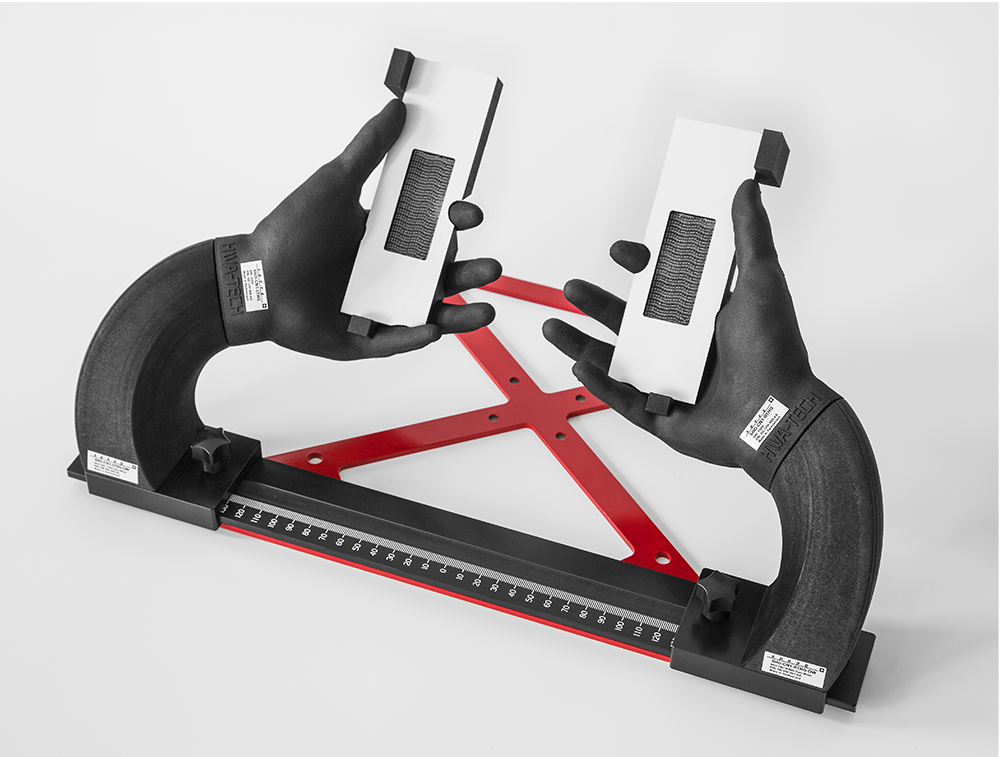

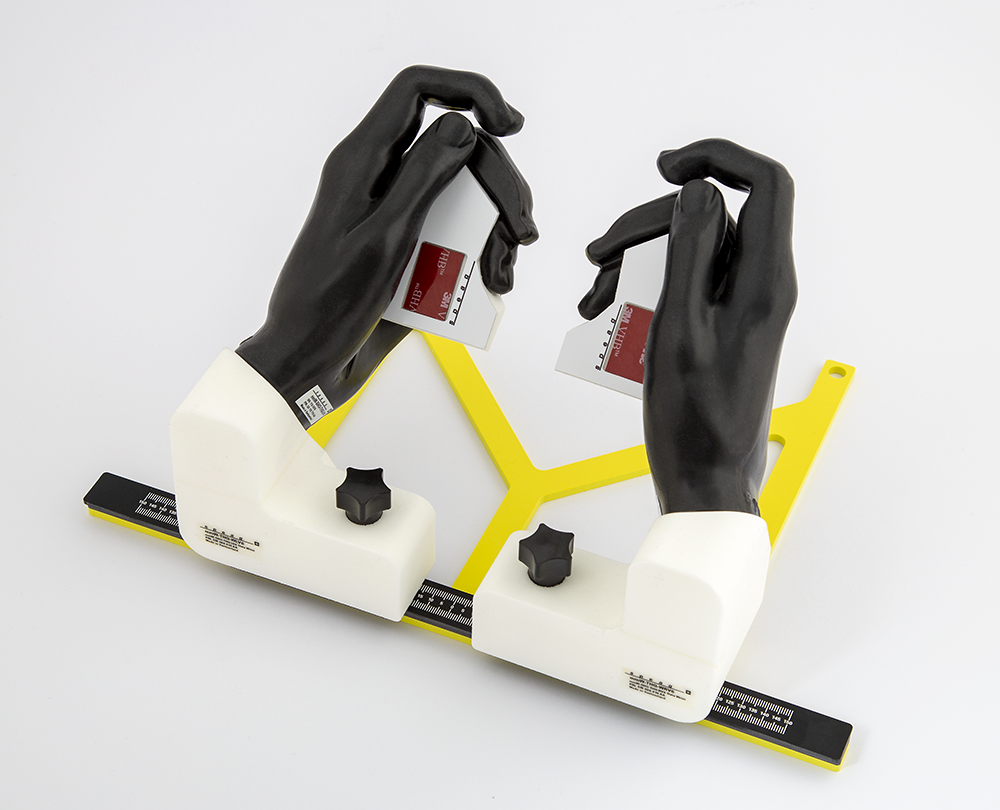

mmWave Two-Hand-Grip phantom Version Package

Anthropomorphic mmWave hand phantoms with low-loss wrist and fixture for evaluating and optimizing the OTA performance of mobile phone devices in two-hand-grip or gaming mode at millimeter-wave frequency range

Detailed specifications: mmW-THG-V6 Package

mmWave hands s

mmWave Right/Left Hand Phantoms for TABlets Version Package

Anthropomorphic mmWave hand phantoms with low-loss wrist and fixture for evaluating and optimizing the OTA performance of antennas in tablet devices at millimeter-wave frequency range

Detailed specifications: mmW-TAB-V6 Package

mmWave Two-Hand-Grip SHO Right/Left Hand Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of mobile phone devices in two-hand-grip or gaming mode

Detailed specifications: mmW-THG-SHO-R/LV6

mmWave SHO Right/Left Hand for TABlets Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of tablet devices

Detailed specifications: mmW-TAB-SHO-R/LV6

mmWave SHO Right/Left Hand for LAPtops Version 6

Anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of antennas on laptop devices

Detailed specifications: mmW-LAP-SHO-R/LV6

handsfixturespacer

mmWave SHO ChiNese1 Right/Left Hand, one or Two-Hand-Grip

Chinese anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of mobile phone devices in one or two-hand-grip

Detailed specifications: mmW-SHO-CN1-R/LTHG

chest phantom web

mmWave Generic Chest Phantom CTIA Version 1

Generic chest phantom for evaluating and optimizing the OTA performance of wireless chest-worn devices

Detailed specifications: mmW-GCPC-V1

ankle phantom web


mmWave Generic Ankle Phantom CTIA Version 1

Generic ankle phantom for evaluating and optimizing the OTA performance of wireless ankle-worn devices

Detailed specifications: mmW-GAPC-V1
