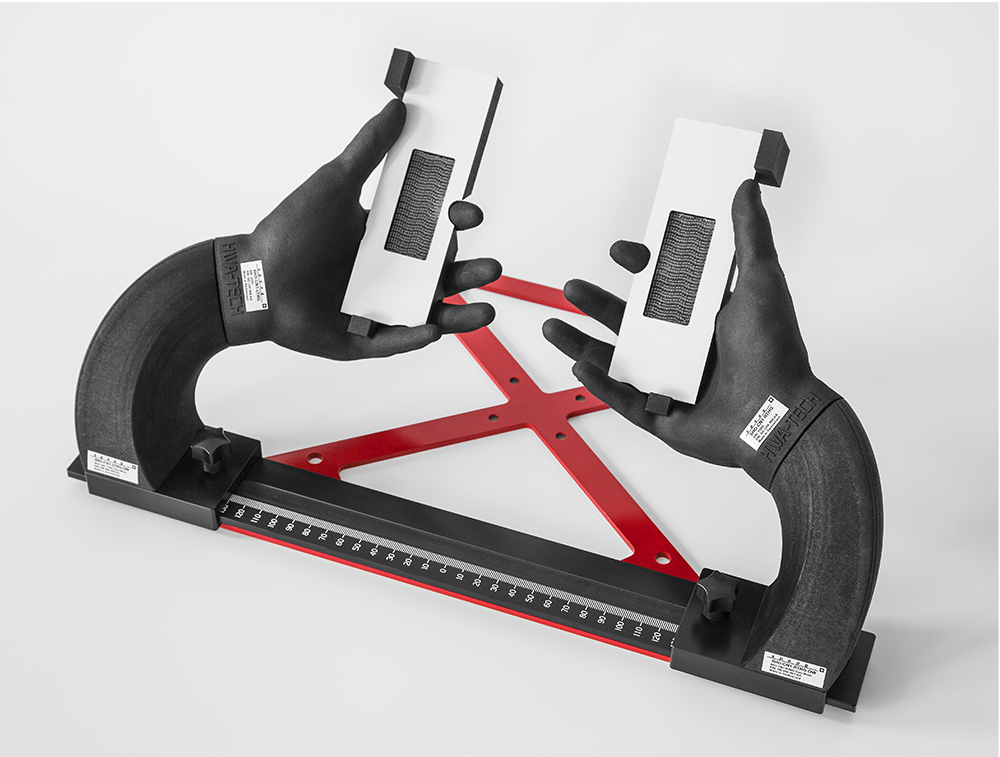

mmWave SHO ChiNese1 Right/Left Hand, one or Two-Hand-Grip

Chinese anthropomorphic hand phantoms for evaluating and optimizing the OTA performance of mobile phone devices in one or two-hand-grip accurately represent the Chinese demographic in terms of hand size and grip style

Developed for the Chinese Academy of Broadcasting Planning (ABP) in partnership with HWA-Tech

Application

Assessment of the radiation pattern or total radiated power of mobile phone devices in one- or two-hand-grip in data mode

Compliance

Material properties compliant with CTIA certification standard "Test Plan for Wireless Device Over-the-Air Performance" for all defined test frequencies in the 3 – 6 GHz range

Weight

0.46 Kg (without spacer)

Construction

Hand phantoms:

dimensions and grip designed in light of Chinese anthropomorphic hand-grip studies performed in collaboration with Chinese Academy of Broadcasting Planning (ABP) and HWA-Tech; manufactured from a silicone-carbon-based mixture (color:Black) with material properties according to CTIA definitions for hand phantoms frequencies from 3 GHz to 6 GHz range; a special low-loss silicone coating is applied to mmW-SHO-CN1-R/LTHG that extends the frequency range beyond 100 GHz



mmW-CN1-THG-SR/LV6 positioning spacers:

made of low-loss material (Rohacell) with dielectric constant < 5.0 and loss-tangent < 0.05

Frequency Range

3 to >100 GHz

Compatibilities

Compatible with the hand-only (data mode) testing fixture mmW-FX V/F/B-SHO-V6 together with the corresponding data wrists mmW-CN1-THG-WV/F/B-R/LV6

Compatible with the hand-only (data mode) testing fixture SHO-FX-V5 together with the corresponding data wrists SHO-CN1-RTHG/LTHG-DWV4

Compatible with the wrist interface on mmW-POPEYE10 whole-body phantom

Compatible with the wrist interface on the forearm phantom mmW-SHO-RFP/LFP-V2

Accessories

For frequencies 3 to >100 GHz

  • mmW-CN1-THG-SR/LV6 positioning spacers
  • mmW-CN1-THG-WV/F/B-R/LV6 data mode wrists
  • mmW-FX V/F/B-SHO-V6 data mode fixture

For frequencies limited up to 10 GHz
