SPEAG phantoms are high-quality products constructed of materials compatible with all of SPEAG's tissue simulating liquids. The shells are constructed with a very tight tolerance of less than 0.2 mm, and all parameters correspond to those requested by specific absorption rate (SAR) standards including alternative phantoms as defined in the IEC/IEEE 62209-1528 standard. Full CAD information has been predefined in the DASY software, enabling fast and easy usage. In addition, custom-made phantoms can be developed on requests including the corresponding DASY8 configuration files.


SAM-Twin

Compliance testing of wireless devices in hand-held configurations according to IEC/IEEE 62209-1528

Shell thickness: 2 ± 0.2 mm (6 ± 0.2 mm at ear point)

Filling volume: approx. 25 liters



Detailed specifications: SAM-Twin




ELI

Compliance testing of wireless devices in body-worn configurations according to IEC/IEEE 62209-1528

Shell thickness: 2 ± 0.2 mm

Filling volume: approx. 30 liters



Detailed specifications: ELI


SAM Chin-20 Right/Left

Tilted SAM head phantom for cases where the antenna is mounted at the bottom of the phone or for all cases where the peak absorption is in the chin region. Both heads of the SAM-Chin20 Right/Left are rotated 20 degrees around the NF line. Each head can be removed individually from the table for emptying and cleaning.



Shell thickness: 2 ± 0.2 mm (6 ± 0.2 mm at ear point)

Filling volume: approx. 10 liters (per head)



Detailed specifications: SAM Chin20

SAM Face Down

The SAM Face-Down Phantom is optimized for assessment of exposure in front of the face and in particular the eyes (e.g., video phones, cameras etc.)



Shell thickness: 2 ± 0.2 mm (6 ± 0.2 mm at ear point)

Filling volume: approx. 10 liters



Detailed specifications: Face-Down

SAM Head Stand

The SAM Head-Stand Phantom is optimized for SAR evaluation of head-belt and similar wireless head accessories.



Shell thickness: 2 ± 0.2 mm (6 ± 0.2 mm at ear point)

Filling volume: approx. 10 liters



Detailed specifications: Head-Stand
ankle phantom without2

Ankle Phantom

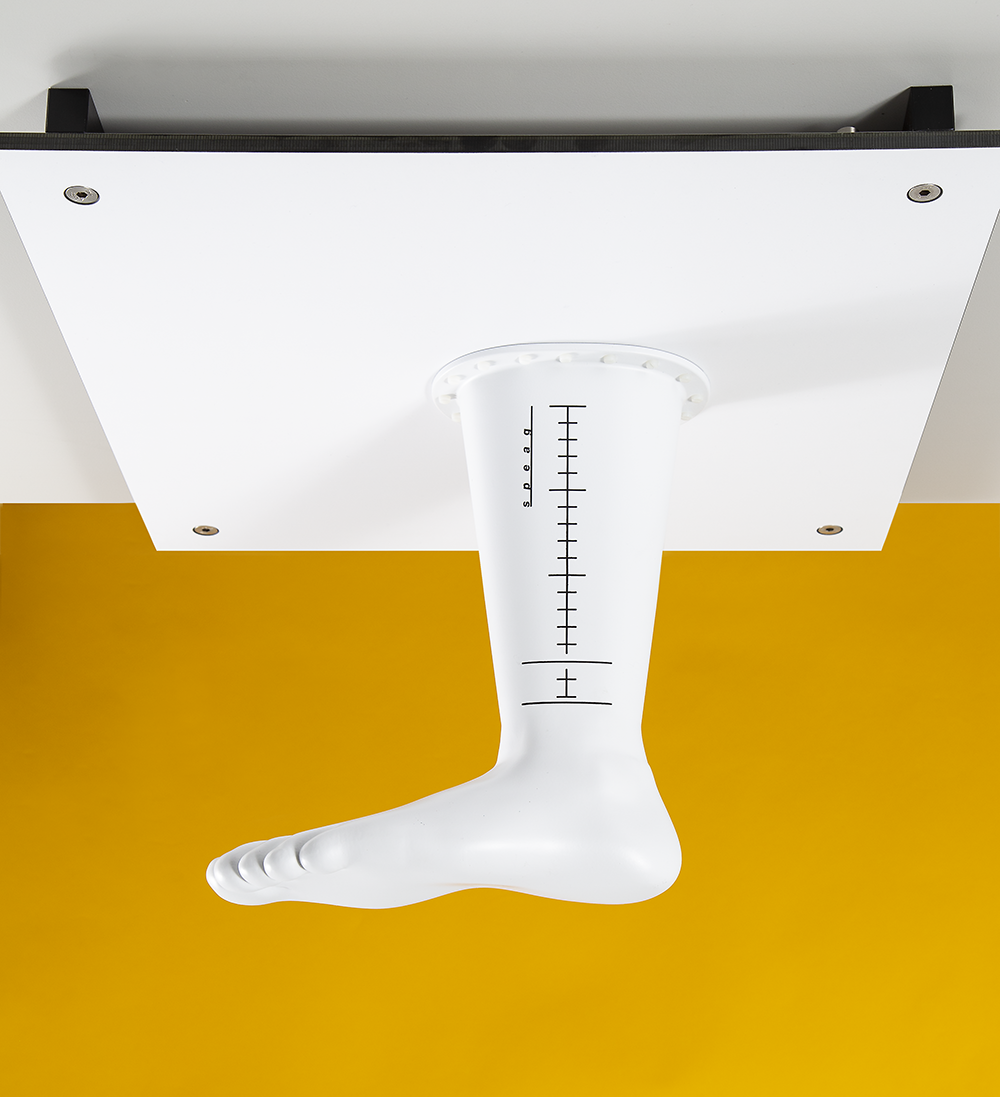

The Ankle Phantom is optimized for SAR evaluations of devices operating in the vicinity of the lower leg or ankle (e.g. tracking devices).



Detailed specifications: Ankle Phantom

Wrist Phantom

The Wrist Phantom is optimized for the SAR evaluation of watches and other wireless hand accessories.



Detailed specifications: Wrist Phantom

WBBDuke Phantom



The Whole-Body Back Duke phantom is optimized for demonstration of SAR compliance of devices mounted to the back of a person, such as wireless-linked backpacks or charging vests.

It is compatible with the SAR procedures for application-specific phantoms described in the latest draft of the unified SAR measurement standard IEC/IEEE 62209-1528.

Shell Thickness: 2 ± 0.2 mm

Filling volume: approx. 70 liters

Detailed specifications: WBBDuke Phantom




Modular Flat Phantom (MFP)

The Modular Flat Phantom consists of three identical modules that can be installed and removed separately without emptying the liquid. It is used for compliance testing of small wireless devices in body-worn configurations according to IEC/IEEE 62209-1528



Shell thickness: 2 ± 0.2 mm

Filling volume: approx. 8 – 9 liters



Detailed specifications: Modular Flat Phantom (MFP)


Membrane Phantom (MEM)

The MEM Phantom is optimized for compliance testing of wireless devices and other electromagnetic-emitting devices that may be partially surrounded by tissue or in direct contact with the tissue (e.g., wireless hands-free kits, hearing aids, skin-mounted devices, inductive activators).



Detailed specifications: Membrane Phantom (MEM)





BSPhantom

Base Station Phantom (BSTP)

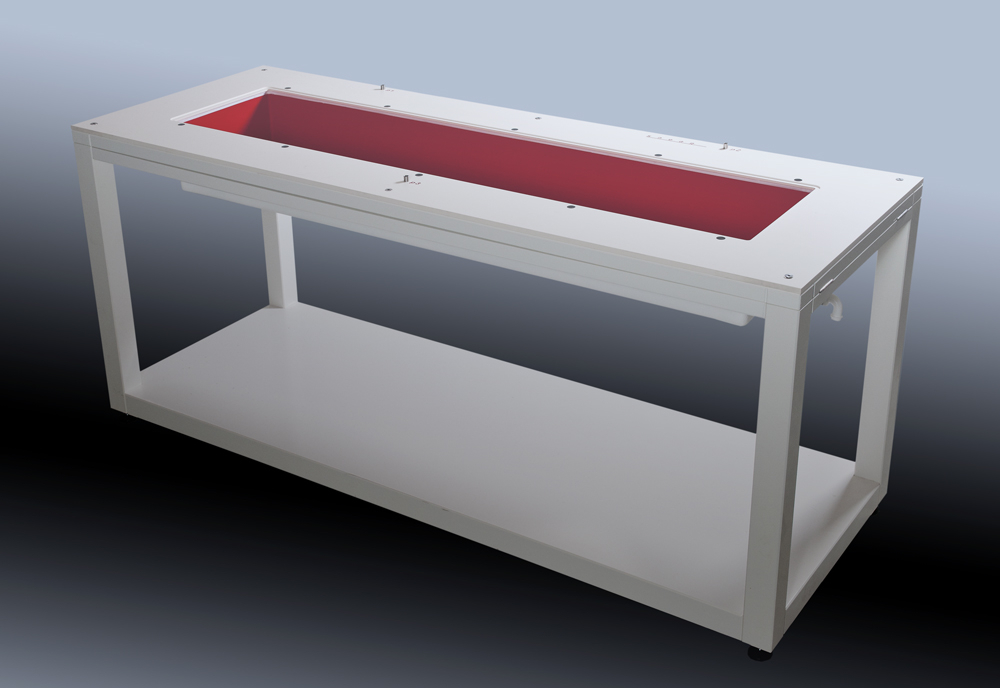

The Base Station Phantom is optimized for SAR evaluations in accordance with Base-Station Antenna Testing standards (e.g., IEC 62232). Two versions are available, BSTP-A for adult and BSTP-C for child exposure assessments.

Shell thickness: 2 ± 0.2 mm

Filling volume: 78 – 80 liters (BSTP-A) or 35 liters (BSTP-C)



Detailed specifications: BSTP-A and BSTP-C

CUSTOM MADE



Detailed specifications: Torso Phantom
