Verification and Validation (V&V) Sources for WPT

Verification and validation (V&V) sources are designed as well-defined sources with target values to verify that the DASY8 Module WPT system operates fully within its specification. A system check is typically performed prior to any compliance evaluation according to IEC PAS 63184:2021. Note that the sources V-Coil500/3 and V-Coil350/85 are also well suited for verification of the handheld device MAGPy Version 2.

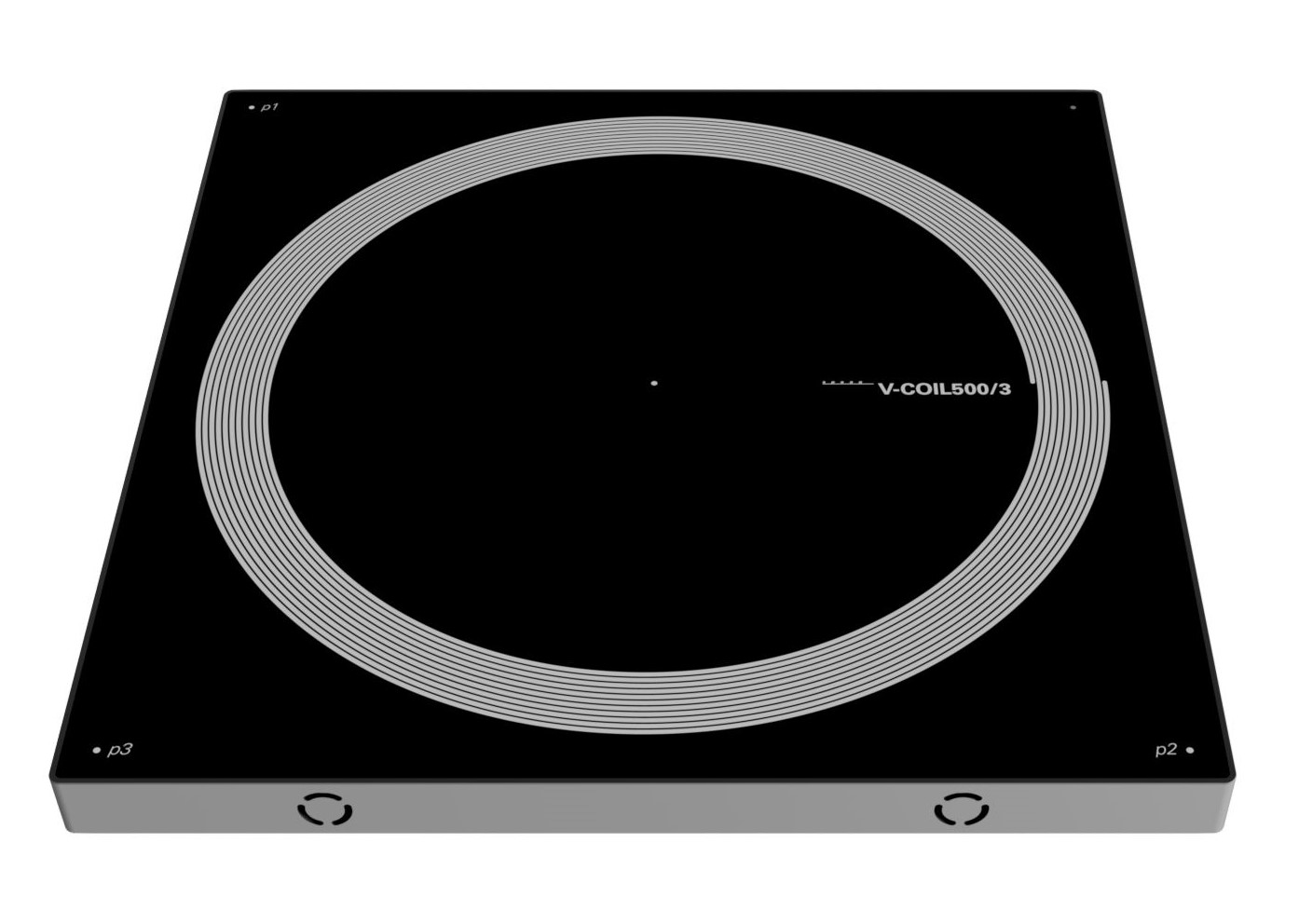

V-Coil500/3 V2

V Coil500 3 cut

  • Coil dimension: 500 x 500 mm  w/ E-field shielding
  • Device dimension: 500 x 500 x 35mm
  • Frequency: 3 kHz
  • Current source: I500/3 (stablized)
  • Current monitor output: SMB connector
  • Calibrated
  • Compliance: IEC PAS 63184:2021

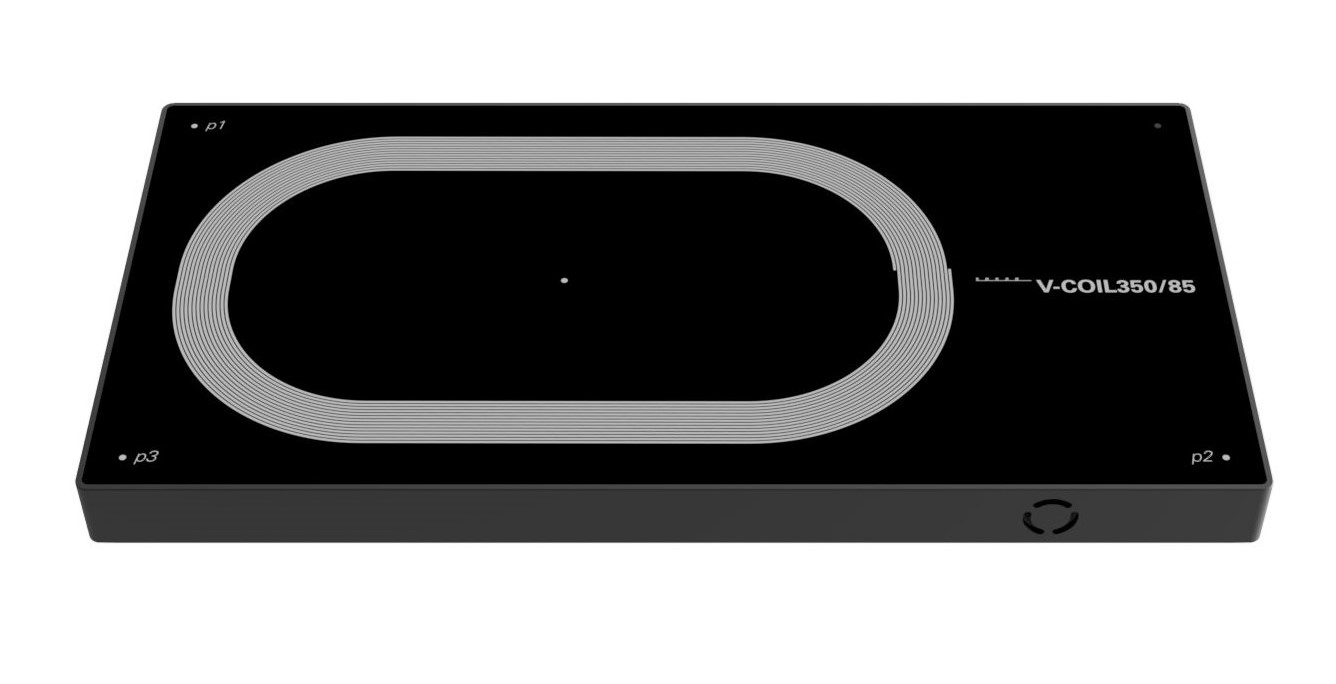

V-Coil350/85 V2

V Coil350 85 cut2

  • Coil dimension: 350 x 200 mm w/ E-field shielding
  • Device dimension: 250 x 500 x 35 mm
  • Frequency: 85 kHz
  • Current source: I350/85 (stablized)
  • Current monitor output: SMB connector
  • Calibrated
  • Compliance: IEC PAS 63184:2021

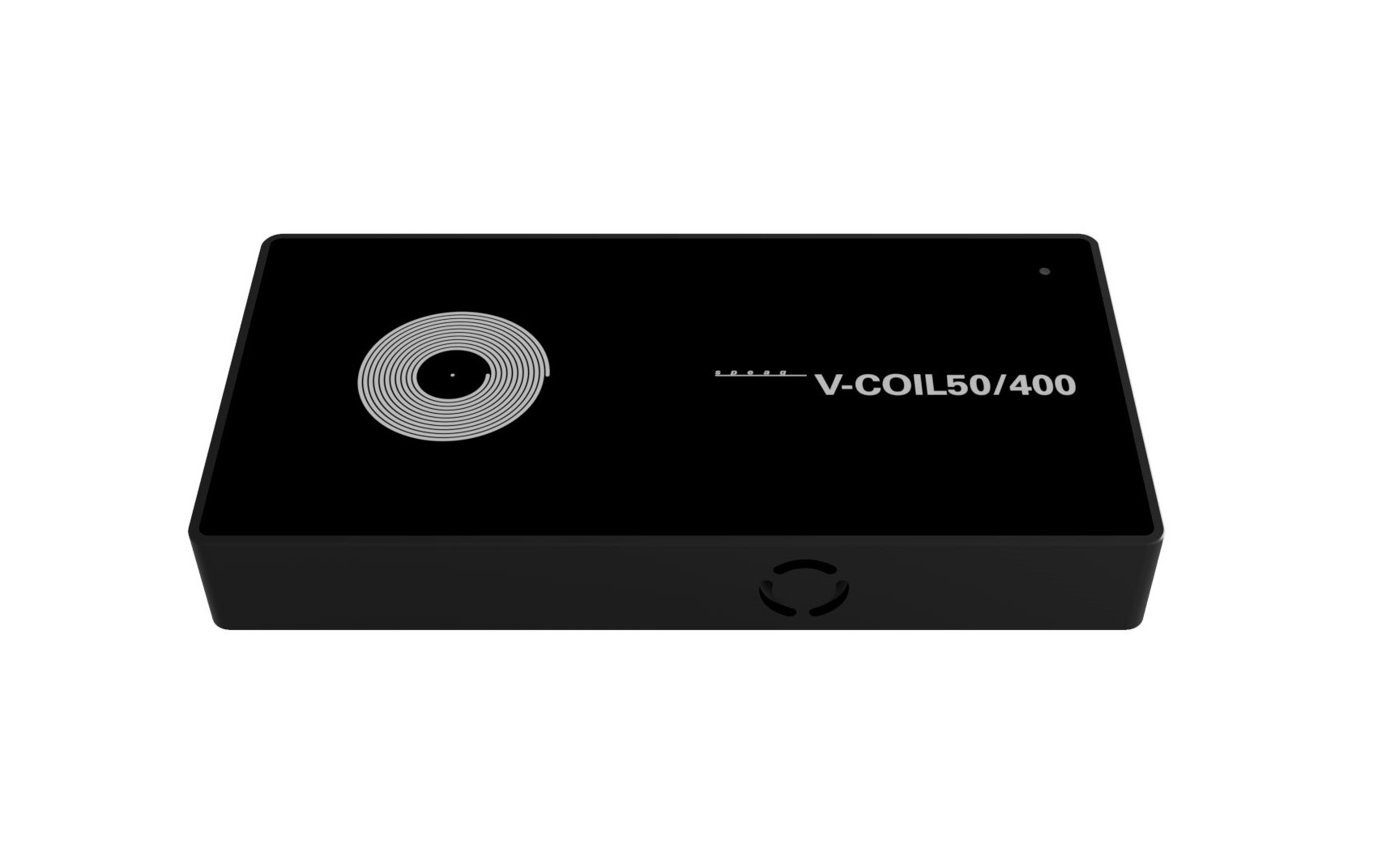

V-Coil50/400 V2

V Coil50 400 cut

  • Coil dimension: 50 x 50 mm w/ E-field shielding
  • Device dimension: 125 x 250 x 35 mm
  • Frequency: 400 kHz
  • Current source: I50/400 (stablized)
  • Current monitor output: SMB connector
  • Calibrated
  • Compliance: IEC PAS 63184:2021

V-Coil50/6780 V2

  • Coil dimension: 50 x 50 mm w/ E-field shielding
  • Device dimension: 125 x 250 x 35 mm
  • Frequency: 6.78 MHz
  • Current source: I50/6780 (stablized)
  • Current monitor output: SMB connector
  • Calibrated
  • Compliance: IEC PAS 63184:2021
