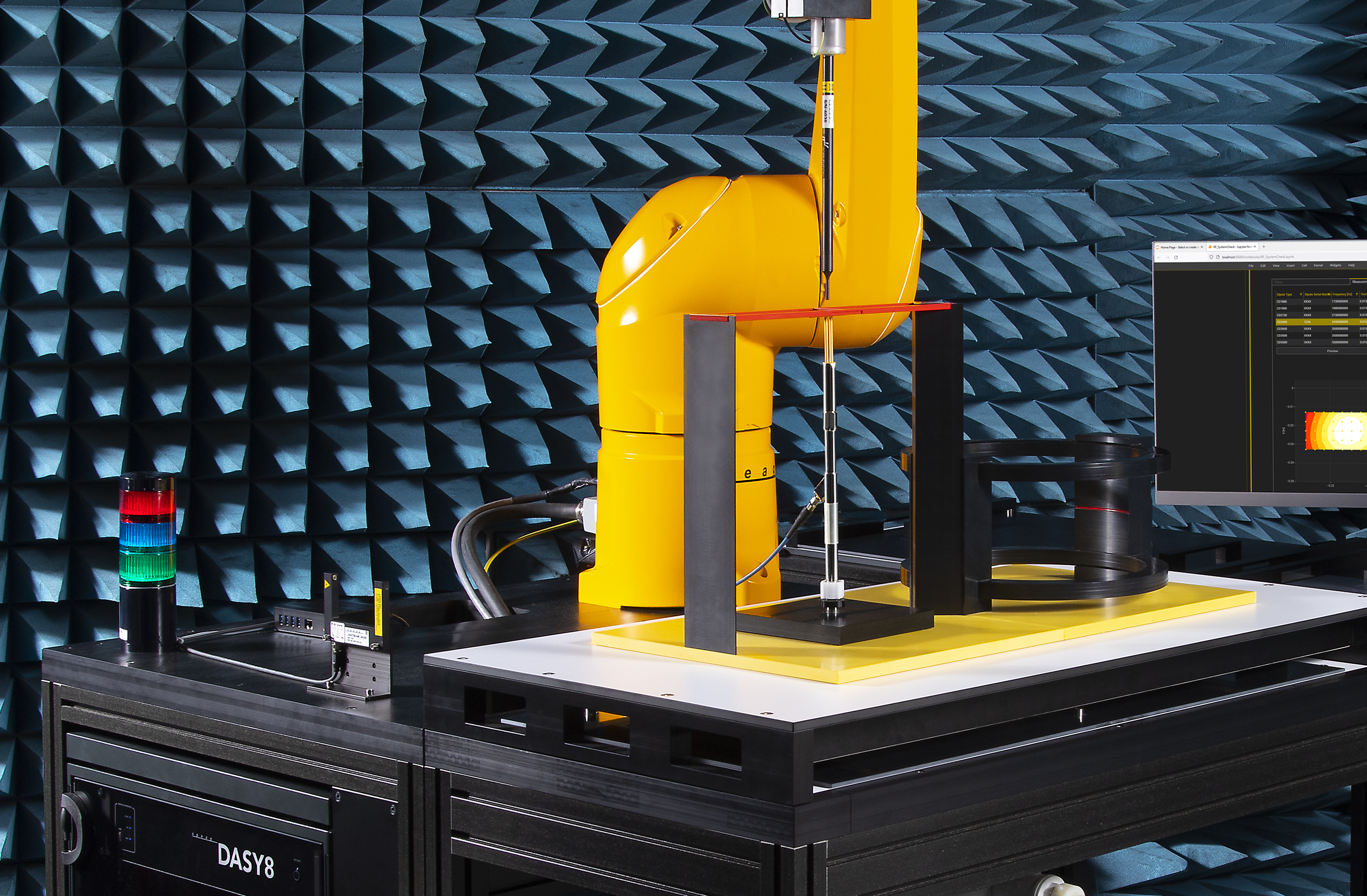

DASY8 HAC detail

DASY8 Module HAC (Hearing Aid Compatibility) is composed of hardware and software components optimized to demonstrate the compliance of wireless devices according to ANSI-C63.19-2019. The solution comprises the Radiofrequency (RF) Extension for RF emission tests and the Tele-Coil (T-COIL) Extension for audio-band magnetic tests.

Both extensions are required to fully characterize wireless devices according to the ANSI-C63.19-2019 standard.


The RF Extension enables measurements of the electric (E-) field generated by wireless communication devices around their audio acoustic output. It is composed of an isotropic E-field probe (i.e., EF3DVx) mounted to the precision TX2 robot allowing to scan the field over a user-defined area. The probes are miniaturized, sensitive, isotopic, linear, and stable. The spatial precision of the probe position during scanning is better than 0.2 mm. A Test Arch enables easy and repeatable positioning of the device to be tested. The E-field averaged over the measurement area is provided as requested by the ANSI-C63.19-2019.

The T-COIL Extension adds the capability of audio band magnetic (ABM) measurements according to ANSI-C63.19-2019. It is composed of an audio magnetic field probe (i.e., AM1DVx) mounted to the precision TX2 robot, a Helmholtz calibration coil (i.e., AMCC), and an audio magnetic measurement instrument (i.e., AMMI). This extension is used to determine the quality of the audio band magnetic field originating from the wireless devices. Jupyter Notebook based graphical user interfaces (GUIs) guide the user through the compliance workflow.


Demonstrate compliance of wireless devices according to ANSI-C63.19-2019.

Not compatible with ANSI-C63.19-2011.

Basic Components

The basic components of DASY8 Module HAC are:

Probes EF3DVx – Isotropic E-field probe for general near-field measurements. Different versions cover frequencies from 300 MHz up to 6 GHz. Sensors, small dipoles, are oriented in a Cartesian coordinate system that provides both field components as well as total field value with the highest precision.
  • Frequency range: 300 MHz – 6 GHz
  • Dynamic range: 2 V/m – >1000 V/m
  • Tip diameter: 3.9 mm
AM1DVx – Active single sensor probe for audio band magnetic field measurement scans; fully RF shielded
  • Frequency range: < 100 Hz – > 10 kHz
  • Dynamic range at 1 kHz (AM1DV2): -69 – +20 dB A/m
  • Dynamic range at 1 kHz (AM1DV3): -60 – +40 dB A/m

HAC Arch – Enables easy and well-defined positioning of the phone and validation dipoles as well as simple teaching of the robot; its dimensions are 370 × 370 × 370 mm. Teaching of the AMCC position is also done with the Arch phantom.

UniPV1 – The Universal Phantom V1 is a flat plate of 100 x 50 cm used as a test bed table. It occupies a full DASY8 platform slot. The HAC Arch is typically placed on the UniPV1 table.


MAIA – Modulation analysis interface to validate the communication settings of the wireless device signal; enables the determination of the linearization parameters.

Mounting Devices

MD4HACV5 – In combination with the HAC Arch Phantom, the mounting device for HAC testing enables accurate positioning of transmitters.

System Check / Verification CD700V3 - CD5500V3 – Symmetrical dipole with built-in two step matching network and balun:
  • CD700V3 (698 – 806 MHz)
  • CD835V3 (800 – 945 MHz)
  • CD1880V3 (1710 – 2000 MHz)
  • CD2150V3 (2000 – 2250 MHz)
  • CD2450V3 (2250 – 2650 MHz)
  • CD2600V3 (2450 – 2750 MHz)
  • CD3500V3 (3300 – 3950 MHz)
  • CD5500V3 (5000 – 5900 MHz)
TMFS – Generates a well-defined magnetic field for the reference check of the T-Coil measurement setup according to ANSI C63.19
Software The Jupyter Notebook web-based GUIs guide the user through the compliance workflow. The main features are:
  • Optimized scanning according to ANSI-C63.19-2019
  • Integrated system performance check module
  • Generation of test reports
Calibration ISO 17025 certified calibration
Standard Compatibility DASY8 Module HAC is compatible with ANSI-C63.19-2019
Uniques Features

MIF measurement


Probe technology

Automated Modulation Interference Factor (MIF) measurements with MAIA

Dipole-based isotropic near-field probes are used to accurately measure the E-field, even in the reactive near field




Easy to use

Workflow optimized to ANSI-C63.19-2019 requirements

Approved by all national regulators

Automated workflow in Jupyter Notebook based GUIs

Product History

See product lifetime

Release Date

November 15th, 2021
