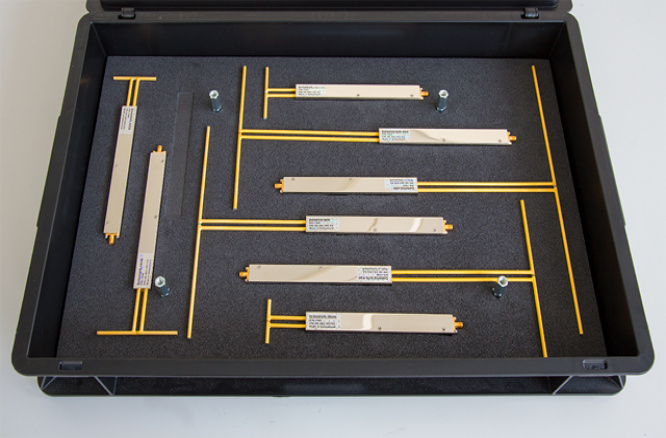

SPEAG offers a variety of near-field sources for the electromagnetic immunity (EMI) and electromagnetic compatibility (EMC) testing of medical implants (8 of 13 models shown in the picture below).

ISO 14117/PC69 & ISO 14708 EMC Dipole Sets: 385 – 3000 MHz

Description

EMC dipole sets for EMC testing of active implantable medical devices for the frequency range 385 – 3000 MHz in accordance with ISO 14117 or ISO 14708 standards.

Calibration
EMC dipoles are characterized in our ISO/IEC 17025 calibration laboratory with respect to magnetic (H-) field symmetry along the dipole arms and return loss for the operating frequency band (contact info@speag.swiss).
Applications The dipoles are tuned to resonance at a distance of 20 mm above a torso simulator tank in which the device is embedded. Operation well above 10 W power is possible for immunity testing of the device at single or adjacent frequencies.

Design

A quarter wave balun is combined with an internal dual stage matching network to cover multiple frequencies or without network for single frequency operation. The external geometry and the resulting H-field are fully symmetrical. A flat body with SMA connector at the far end eases the manual positioning above the phantom.

AD385V5

Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:

380 – 390 MHz (over torso tank)
>14 dB
385 MHz (RL typ >20 dB)
>10 W continuous
319 × 318 mm

AD450V5

Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:

432 – 464 MHz (over torso tank)
>14 dB
450 MHz (RL typ >22 dB)
>10 W continuous
309 × 318 mm

AD600V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
581 – 614 MHz (over torso tank)
>14 dB
600 MHz (RL typ >22 dB)
>10 W continuous
232 × 279 mm
AD750V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
710 – 780 MHz (over torso tank)
>14 dB
745, 710, 780 MHz (RL typ >22 dB)
>10 W continuous
203 × 340 mm
AD835V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
791 – 853 MHz (over torso tank)
>14 dB
825, 800, 810, 850 MHz (RL typ 15 – 19 dB)
>10 W continuous
179 × 326 mm
AD900V5



Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
868 – 937 MHz (over torso tank)
>14 dB
900, 870, 875, 930 MHz (RL typ 15 – 19 dB)
>10 W continuous
163 × 312 mm
AD1500V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
1480 – 1520 MHz (over torso tank)
>14 dB
1500 MHz (RL typ >25 dB)
>10 W continuous
86 × 204 mm
AD1610V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
1550 – 1650 MHz (over torso tank)
>14 dB
1610 MHz (RL typ >25 dB)
>10 W continuous
82 × 204 mm
AD1720V5

Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:

1700 – 1740 MHz (over torso tank)
>14 dB
1720 MHz (RL typ >16)
>10 W continuous
75 × 198 mm
AD1880V5

Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:

1810 – 1920 MHz (over torso tank)
>14 dB
1880, 1845, 1850, 1910 MHz (RL typ 16 – 25 dB)
>10 W continuous
69 × 198 mm

AD1950V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
1900 – 2000 MHz (over torso tank)
>14 dB
1950 MHz (RL typ >22 dB)
>10 W continuous
56 × 202 mm
AD2450V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
2350 – 2550 MHz (over torso tank)
>14 dB
2450 MHz (RL typ >22 dB)
>10 W continuous
52 × 202 mm
AD3000V5 Frequency band:
Return loss:
Characterized at:
Power capability:
Arm length × height:
2860 – 3170 MHz (over torso tank)
>14 dB
3000 MHz (RL typ >17dB)
>10 W continuous
42 × 201 mm
