mmW-SAM-V10

mmW-SAM-V10

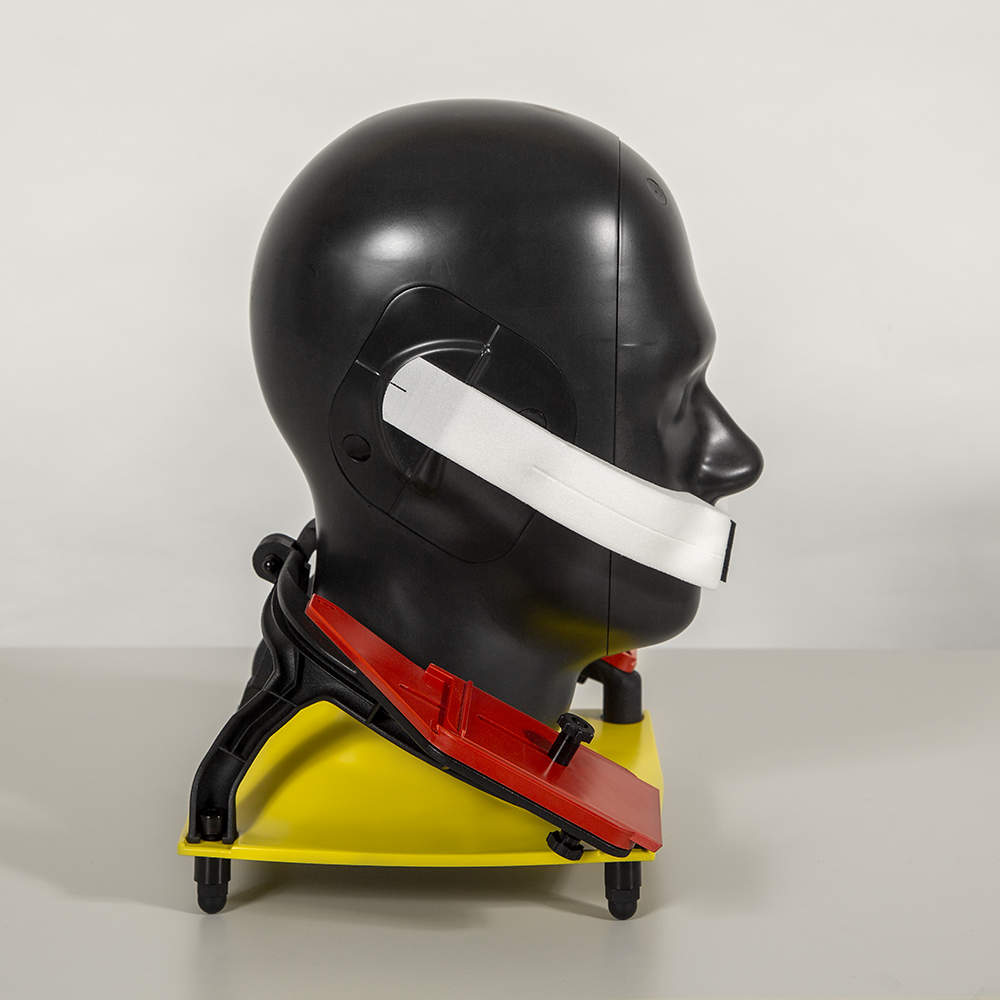

1912 holder holder mask side3

mmWave SAM HEAD Phantom Package Version 10

Anthropomorphic head phantom for evaluating the OTA performance of mobile phone at millimeter-wave frequency range

consists of:

Head (mmW-HEAD-P10)
Face (mmW-FACE-P10)
Ears (mmW-EAR-G1-P10)

Head Stand (STAND-HEAD-P10)

Talk Mode Fixture (SHO-FTM-P10V3)

Mask (mmW-SAM-Mask6V3)

Application

Assessment of radiation pattern or total radiated power of mobile phones in talk mode in combination with a hand phantom or in head only mode; usage only in upright position

Compliance

Material properties compliant with CTIA certification standard "Test Plan for Wireless Device Over-the-Air Performance" requirements for hand material for all defined and expected test frequencies in the 3 – 6 GHz range

Head geometry compliant with SAM data as defined by IEEE SCC34 and 3GPP TR25.914 "Measurements of Radio Performances for UMTS Terminals in Speech Mode" Release 6 and with CTIA Certification Standard “Test Plan for Wireless Device Over-the-Air Performance”

Weight

4.8 Kg

Dimensions

Width: 158 mm
Depth: 165 mm
Height: 287 mm

Construction

mmW-HEAD-P10, mmW-FACE-P10, and mmW-EAR-G1-P10:

manufactured from a lossy silicone-carbon-based mixture (color:Black) with material properties according to CTIA definitions for hand phantoms; supported by a conductive inner skeleton with a conductive plastic, a special low-loss silicone coating is applied to mmW-SAM-V10 that extends the frequency range to 110 GHz



STAND-HEAD-P10:

a low-loss high precision stand for positioning mmW-SAM-V10 for testing of wireless devices in head-only mode



SHO-FTM-P10V3:

two talk mode fixtures for accurate and repeatable positioning of SHO- hand phantoms relative to the mmW-SAM-V10 head phantom for talk-mode testing



mmW-SAM-Mask6V3:

low-loss high precision 6° degree mask for precise positioning of mobile phone devices in a tilted position relative to the cheeks of the mmW-SAM-V10 head phantom

Frequency Range

6 – 110 GHz

Compatibilities

mmW-POPEYE10 whole body phantom

mmW-FEYE-V2-P10 face with eyes phantom

mmW-EAR-A2-P10 anatomical ear phantoms

mmW-CHEST-P10 chest phantom
