RF Sources

With POWERSOURCE1, SPEAG offers an integrated traceable radiofrequency (RF) source that is calibrated in our ISO17025 laboratory to drive passive V&V sources up to 6 GHz.

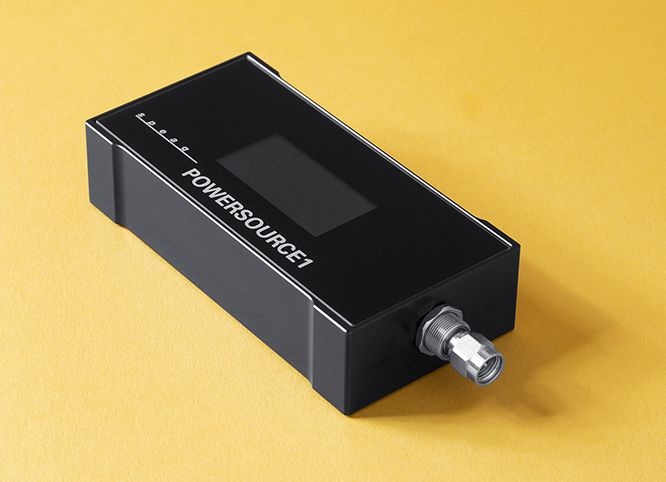

2202 powersource02 web

POWERSOURCE1

Component



The POWERSOURCE1 is powered via USB and includes a very stable RF power source, a bidirectional coupler, and a micro-controller that precisely and continuously controls output power by means of calibrated forward and reflected power measurements. The frequency and power of the POWERSOURCE1 can be manipulated on the device as well as via USB. This lightweight product with a minimal size is an optimal solution for labs that use specific absorption rate (SAR) validation sources on DASY and cSAR3D to conduct SAR system performance checks and/or validation.

Signal Type Continuous-wave (CW)
Applications

System performance check and validation with a CW signal

Operating Frequencies*

600, 650, 750, 835, 850, 900, 1300, 1450, 1500, 1640, 1750, 1800, 1900, 1950, 2000, 2100, 2300, 2450, 2550, 2600, 3000, 3300, 3400, 3500, 3600, 3700, 3800, 3900, 4000, 4100, 4200, 4300, 4400, 4500, 4600, 4700, 4800, 4900, 5000, 5200, 5250, 5300, 5400, 5500, 5600, 5750, 5800, 5850 MHz

* full list available only for units with s.n. above 4000

Output power

-5.0 to +17.0 dBm

Size (L × W × H)



93 × 46.5 × 19 mm for s.n. below 4100

93 × 46.5 × 22 mm for s.n. above 4100

Weight

110 g for s.n. below 4100

140 g for s.n. above 4100

Accessories USB cable
Calibration

Regular calibration is recommended for optimal performance. Each POWERSOURCE1 is calibrated in SPEAG's ISO 17025 accredited laboratory prior to shipment.


The desired power level and operating frequency can be easily adjusted with the buttons and monitored on the LCD display.

The available frequencies match SPEAG's product range of system validation dipoles, while the power level can be set between -5 to +17 dBm in 1 dBm steps for each chosen frequency.
