ACCESSORIES

POPEYE ACCESSORIES

STAND-P10V2

Standing support for the POPEYE10 whole body phantom

Detailed specifications: STAND-P10V2

STAND-HEAD-P10

Standing support for the HEAD-P10 head phantom

Detailed specifications: STAND-HEAD-P10

TALK MODE

SHO-FTMV2

Lightweight high precision fixture for accurate and repeatable positioning of SPEAG's SHO- hand phantoms relative to the SAM-V4.5BS head phantom for talk-mode testing of mobile phone devices

Detailed specifications: SHO-FTMV2

SHO-FTM-P10V3

SHO Fixture for Talk Mode testing on Head P10 V3

Lightweight high precision fixture for accurate and repeatable positioning of SPEAG's SHO- and mmW-SHO- phantoms relative to the HEAD-P10 and mmW-HEAD-P10 phantoms for talk-mode testing of mobile phone devices

Detailed specifications: SHO-FTM-P10V3

SAM-PPV1

Lightweight high precision phone positioner for accurate and repeatable positioning of mobile phone devices relative to the SAM-V4.5BS head phantom for head only testing of mobile phone devices in talk mode

Detailed specifications: SAM-PPV1

SAM-Mask6V1/V2

Low-loss high precision 6° mask for precise positioning of mobile phone devices in a tilted position relative to the SAM-V4.5BS cheeks

Detailed specifications: Mask6V1/V2

SAM-Mask15V1

Low-loss high precision 15° mask for precise positioning of mobile phone devices in a tilted position relative to the SAM-V4.5BS cheeks

Detailed specifications: Mask15V1

SAM-Mask6V3

Low-loss high precision 6° mask for precise positioning of mobile phone devices in a tilted position relative to the HEAD-P10 and mmW-HEAD-P10 phantoms' cheeks

Detailed specifications: Mask6V3

SHO-Rx/Lx-ADTMFV2

Lightweight high precision adaptors for accurate and repeatable positioning of SHO-V3RB/LB, SHO-V3RP/LP, and SHO-V3RC/LC hand phantoms relative to the SAM-V4.5BS head phantom using SPEAG's latest talk-mode fixture SHO-FTMV2 for OTA testing of mobile phone devices

Detailed specifications: SHO-Rx/Lx-ADTMFV2

DATA MODE

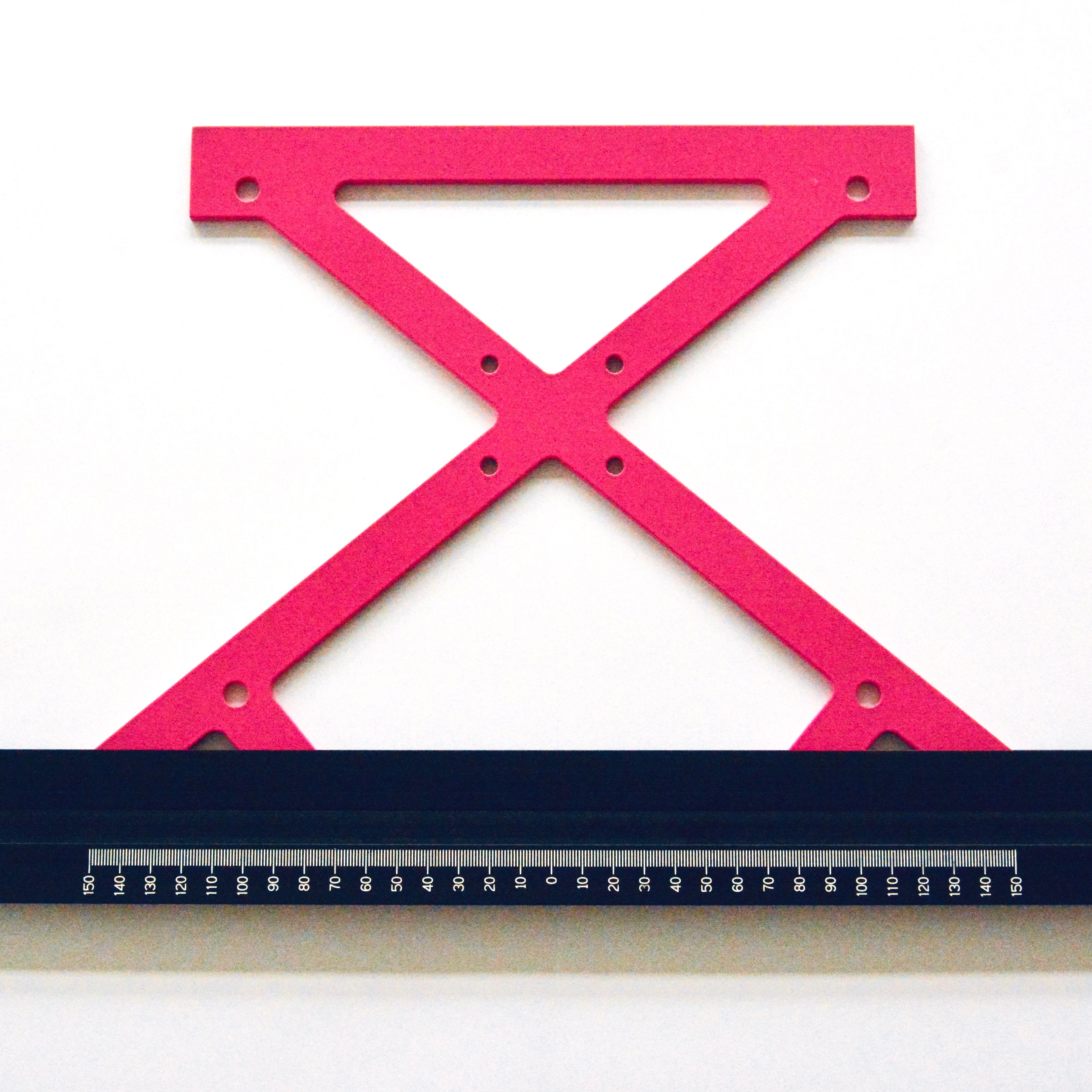

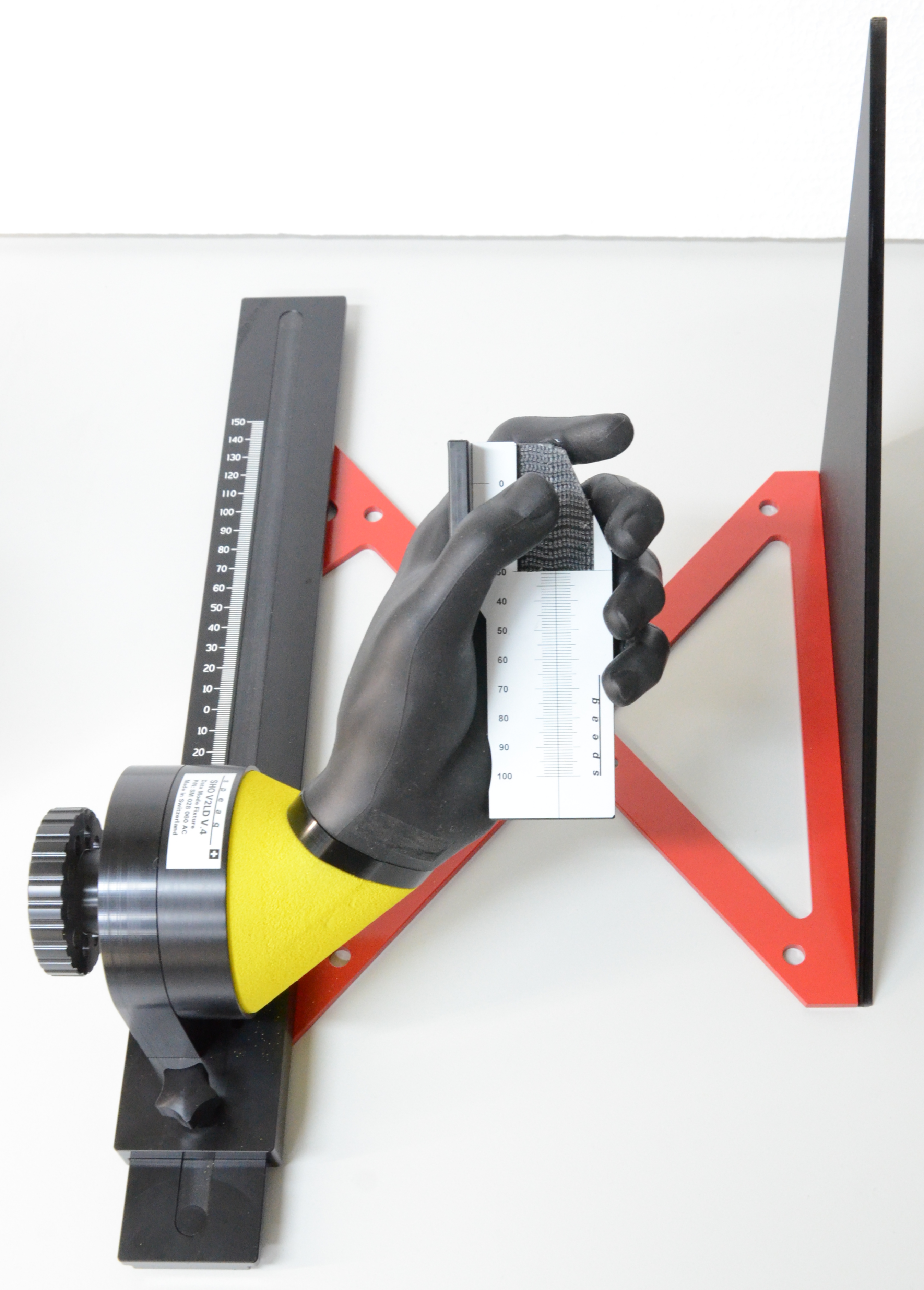

SHO-FX-V5 (replaces SHO-FX-HOTV4)

Low-loss high precision fixture for accurate positioning of SHO hand and forearm phantoms in correct position for testing of devices in data mode. Specially designed for positioning the axis of the forearm and ankle in line with the rotation axis

Detailed specifications: SHO-FX-V5

mmW-FX V/B/F-SHO-V6

Low-loss high precision fixture for accurate positioning of mmWave SHO hand phantoms in correct position for testing of devices in data mode at millimeter-wave frequency range.

Detailed specifications: mmW-FX V/B/F-SHO-V6

SHO-CN1-RTHG/LTHG-DWV4

Right and left wrist extensions for correct positioning of SHO-CN1-RTHG/LTHG and mmW-SHO-CN1-RTHG/LTHG hand phantoms on the SHO-FX-V5 data mode fixture

Detailed specifications: SHO-CN1-RTHG/LTHG-DWV4

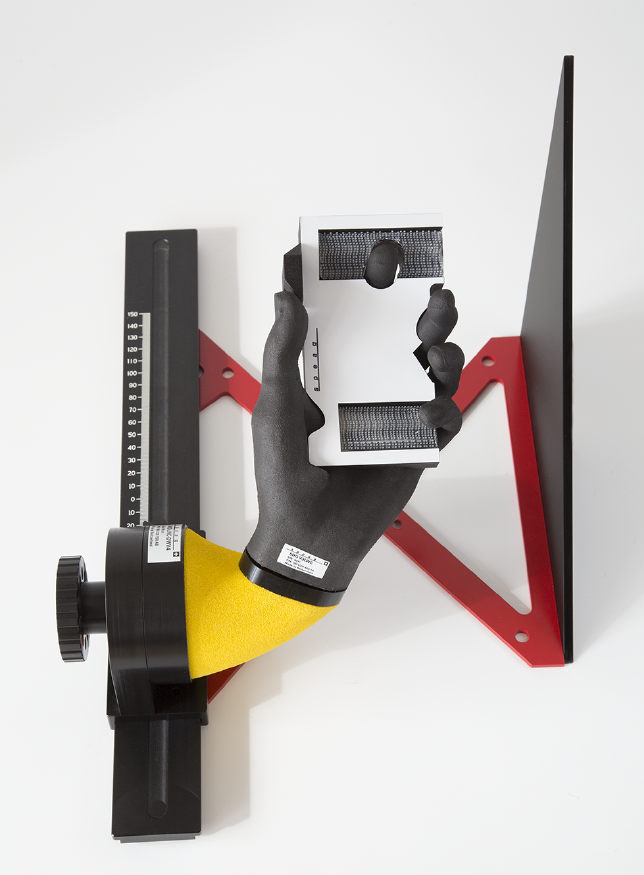

SHO-RWC/LWC-DWV4

Right and left wrist extensions for correct positioning of SHO-V3RW-C/LW-C and mmW-UWPDA-SHO-R/LV6 hand phantoms on the SHO-FX-V5 data mode fixture

Detailed specifications: SHO-RWC/LWC-DWV4

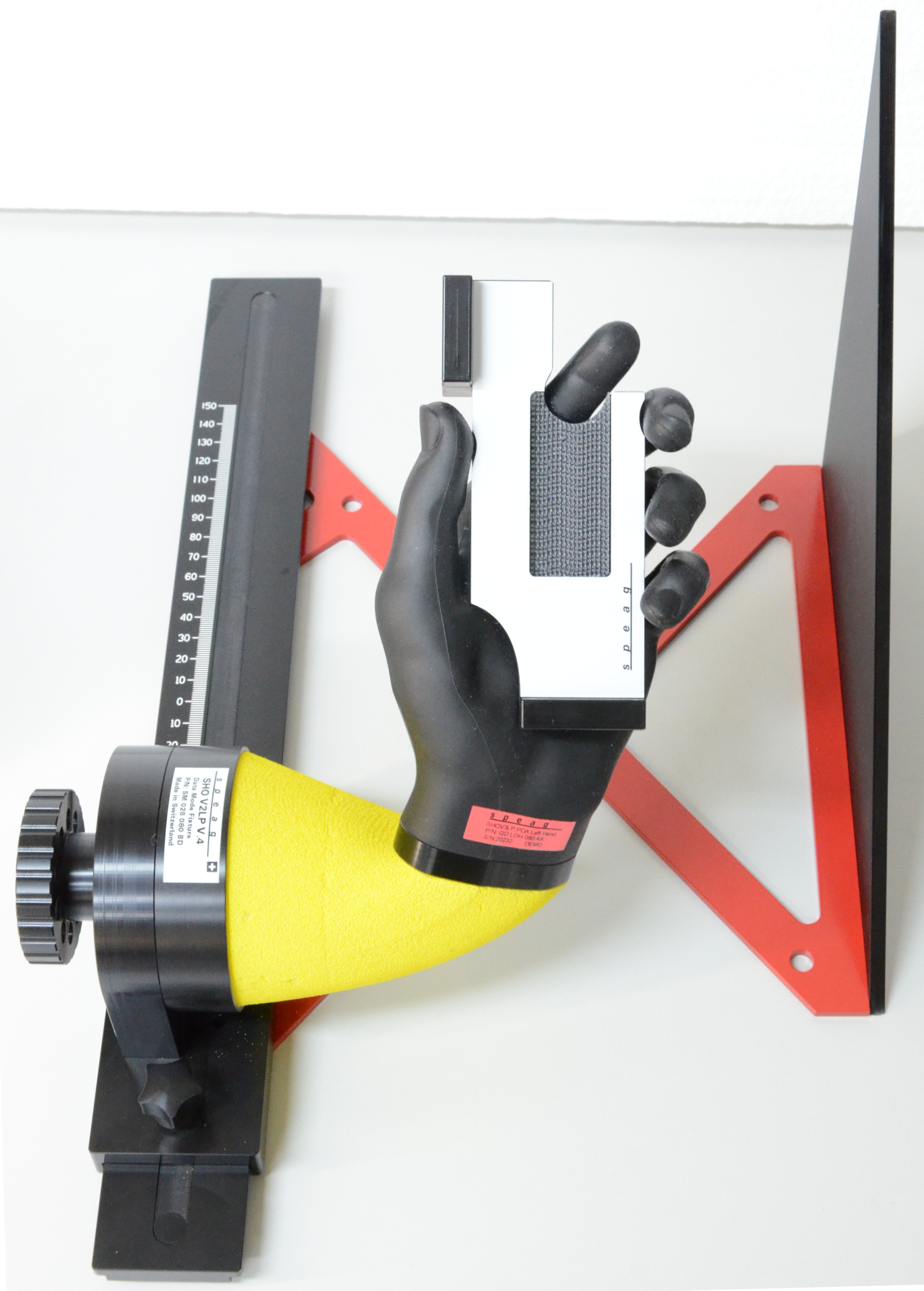

SHO-RP/LP-DWV4

Right and left wrist extensions for correct positioning of SHO-V3RP/LP and mmW-PDA-SHO-R/LV6 hand phantoms on the SHO-FX-V5 data mode fixture

Detailed specifications: SHO-RP/LP-DWV4

SHO-RD/LD-DWV4

Right and Left wrist extensions for correct positioning of SHO-V3RD/LD and mmW-DM-SHO-R/LV6 hand phantoms on the SHO-FX-V5 data mode fixture

Detailed specifications: SHO-RD/LD-DWV4

SHO-RTHG/LTHG-DWV4

Right and left wrist extensions for correct positioning of SHO-V3RTHG/LTHG and mmW-THG-SHO-R/LV6 hand phantoms on the SHO-FX-V5 data mode fixture

Detailed specifications: SHO-RTHG/LTHG-DWV4

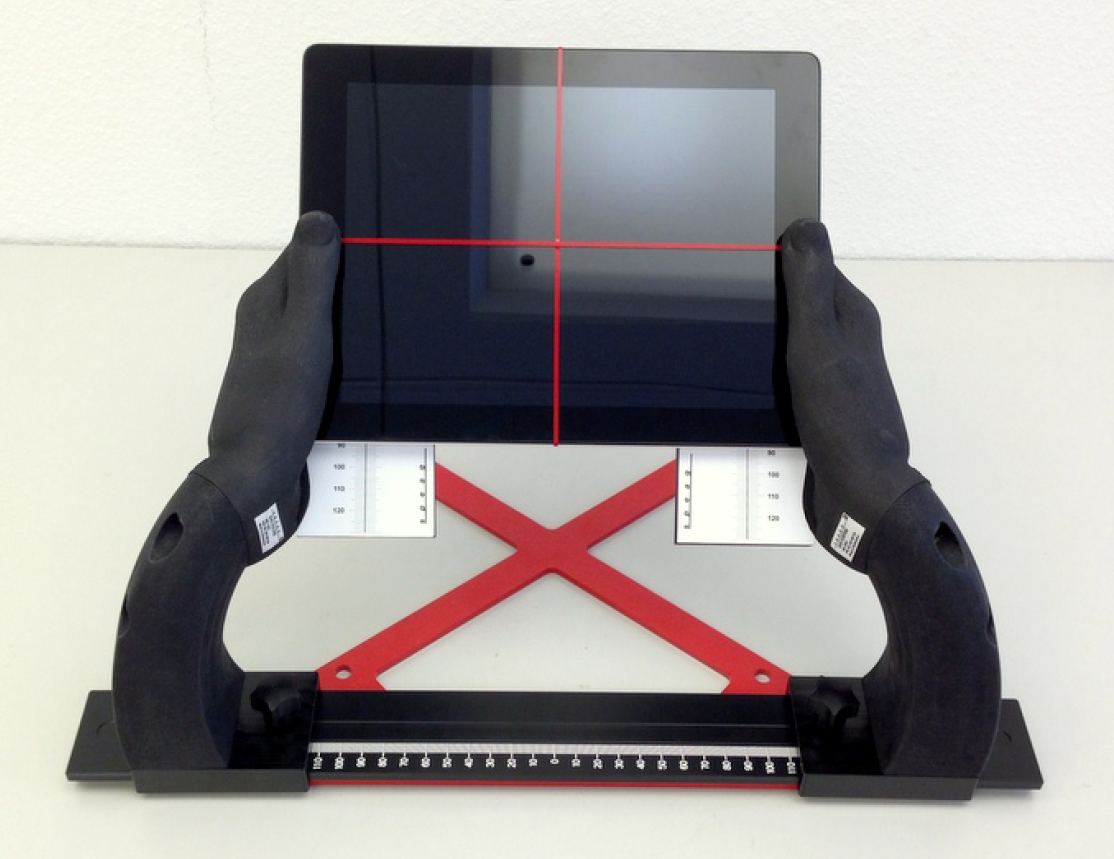

SHO-RTAB/LTAB-DWV4

Hand only (data mode) wrist extension for testing of SHO-V3RTAB/LTAB and mmW-TAB-SHO-R/LV6 hand phantoms on the SHO-FX-V5 data mode fixture

Detailed specifications: SHO-RTAB/LTAB-DWV4

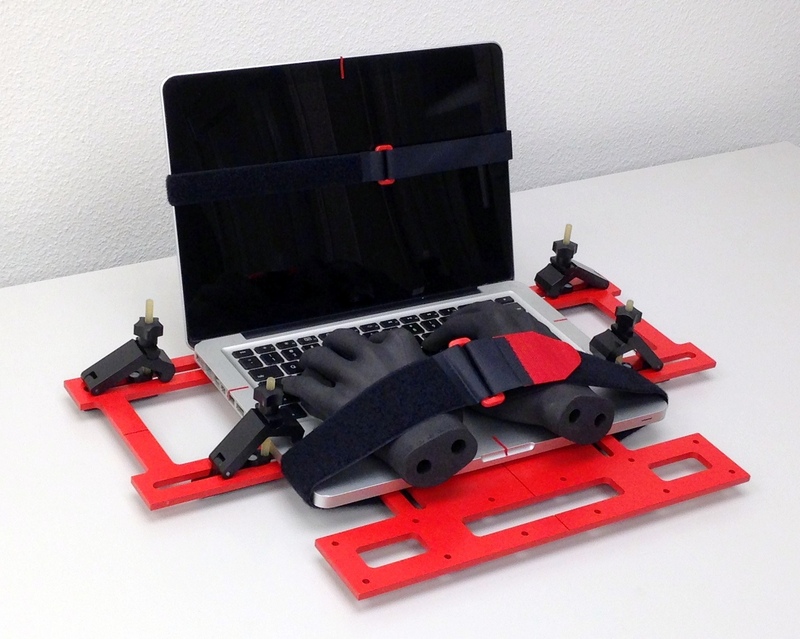

SHO-FLAPV1

Lightweight high precision fixture for accurate positioning of laptop, notebooks and keyboards devices for OTA testing and for securing the SHO-V3RLAP/LLAP hand phantoms on the keyboard

Detailed specifications: SHO-FLAPV1

ALIGNMENT TOOLS AND SPACERS

SHO-ATB

SHO alignment tool for brick mobile phones

Detailed specifications: SHO-ATB

SHO-ATC

SHO alignment Tool for clam shell mobile phones

Detailed specifications: SHO-ATC

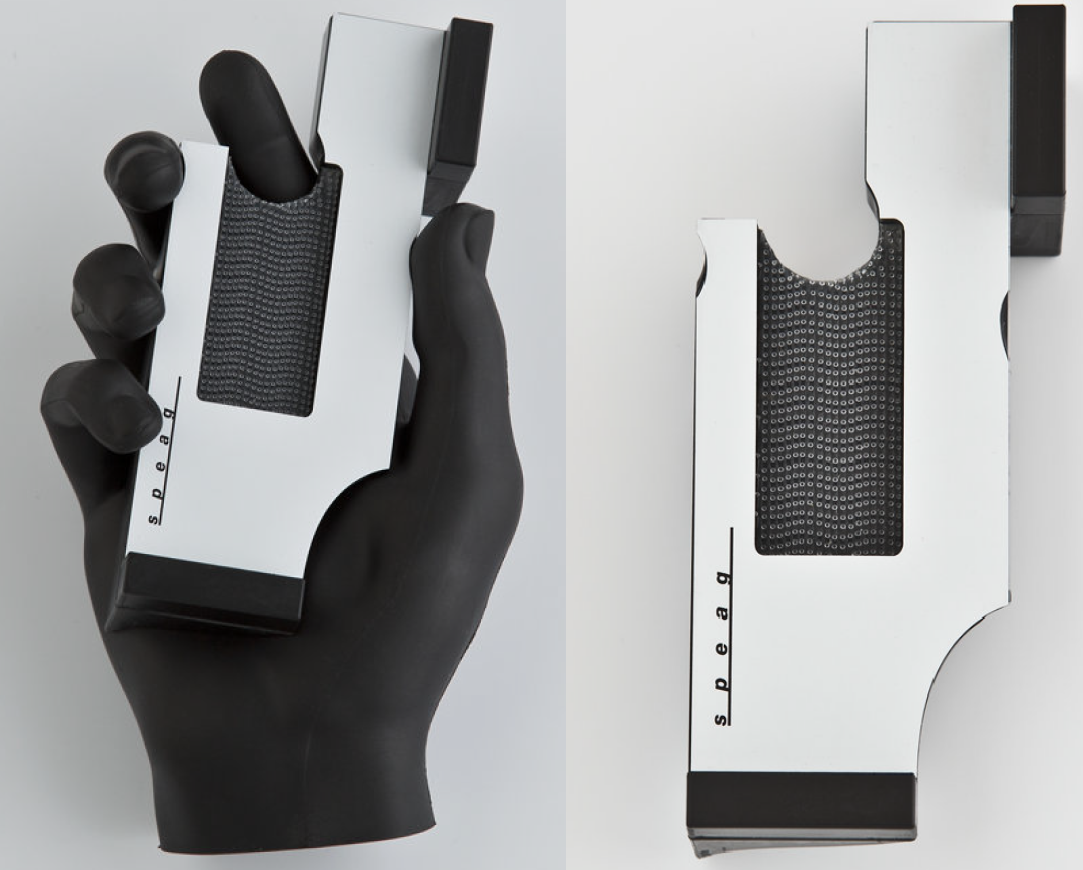

SHO-Hand Spacers

Low-loss spacers for accurate and repeatable positioning of mobile phones in SHO- hand phantoms

Detailed specifications: Hand Spacers

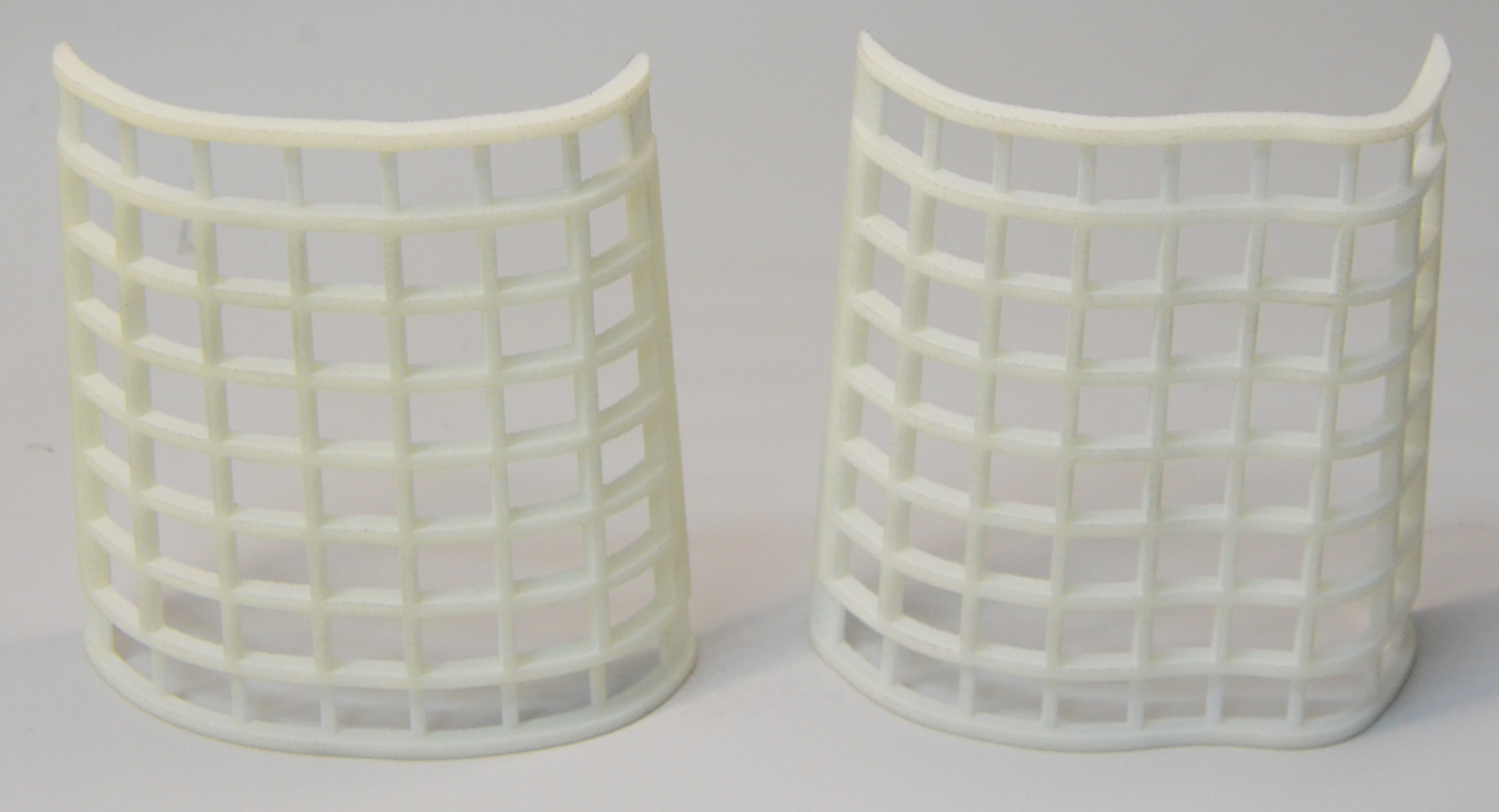

SHO-RFP/LFP-SV3

Low-loss spacers for accurate and repeatable positioning of devices on SHO-RFP/LFP-V2 forearm phantom

Detailed specifications: SHO-RFP/LFP-SV3

PRESS GUARD

SHO-PG-V1

Insulating stickers to prevent actuation of mobile phone side keys during measurements with SHO hand phantoms

Detailed specifications: SHO-PG-V1

MOUNTING EQUIPMENT

TRAVEL CASE

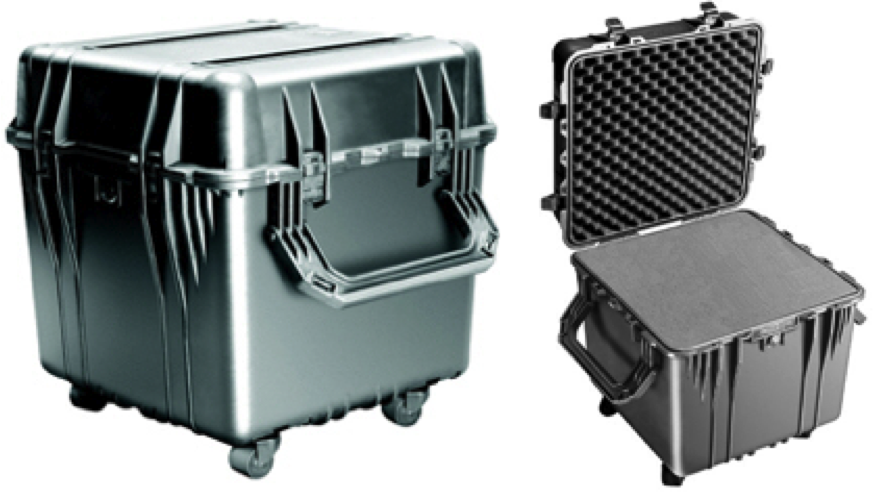

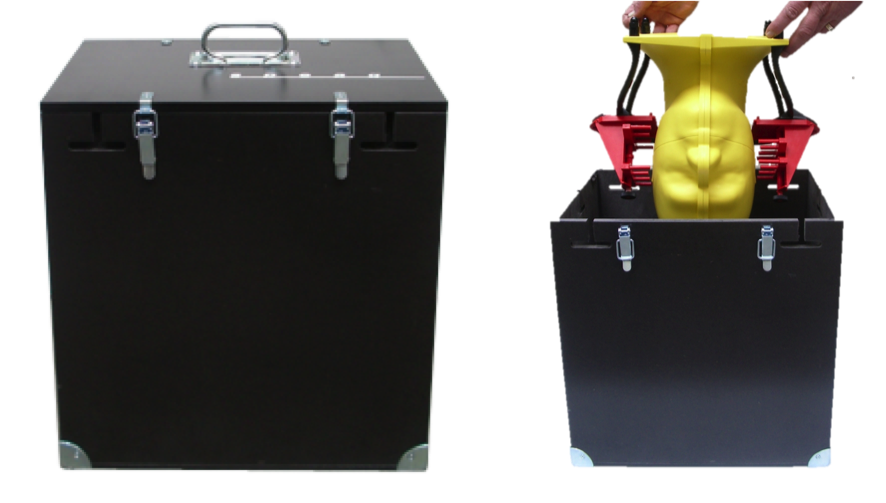

TCCT and TCCT/TB

Safely transport of the SAM-V4.5BS head phantom

Detailed specifications: TCCT and TCCT/TB
