SENS

DASY8 Module SENS

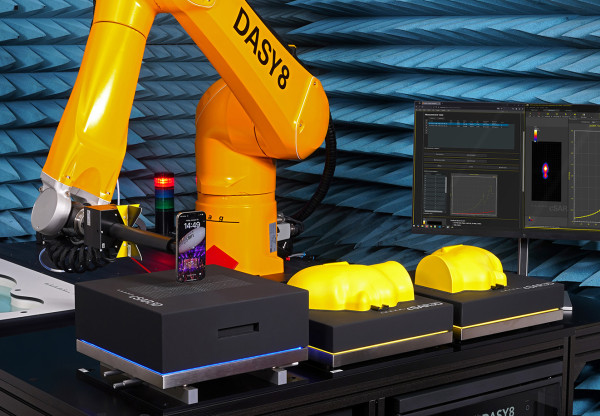

DASY8 Module SENS is used for the characterization of wireless devices that make use of sensor-based dynamic power control. The high positional accuracy of the DASY8 robot enables fast and accurate measurements of motion and proximity sensors. In combination with the high temporal resolution of the cSAR3D system, DASY8 Module SENS enables the use of such sensors for characterization of dynamic power control for electromagnetic field (EM) measurement.

DASY8 Module SENS uses the same hardware as DASY8^3D (DASY8 Module c3D). It is therefore fully compatible for integration with other DASY8 and cSAR3D modules and is available for existing DASY83D systems with only a software upgrade.

The user interface is a Jupyter-Notebook-based application that supports fully automated testing of devices with proximity sensors and motion sensors on cSAR3D for measurement of both static and time-averaged specific absorption rate (SAR). The software records the position of the device under test (DUT) as well as the SAR over time.

System	DASY8 Module SENS uses the same combination of the DASY8 robot and cSAR3D system introduced in the c3D module for automated SAR measurement. The platform accommodates a phantom slot for SAR, a free space phantom slot, and three cSAR3D systems. The user interface has been designed for an efficient workflow to characterize proximity and motion sensor-based dynamic power control.
Applications	The DASY8 Module SENS enables dynamic precision device positioning over the cSAR3D phantoms to obtain position and SAR data over time. In combination with the SAR-measurements by cSAR3D, the system correlates motion and SAR data for the characterization of dynamic power control. The system can be used purely as a positioner to allow for correlation of the motion data over time to custom logs.
Add-On c3D Platform	The specific Add-On c3D platform includes: DUT pick-up station cSAR3D mounting structure for precise positioning of cSAR3D Right Head, Left Head, and Flat phantoms Cabinet for DASY8 robot controller c3D cabinet for the Robobox and the base station simulator
Module c3D Components	The specific Module c3D components are: RoboBox V2.0 DUT Gripper V2 2 Light-Beam Units Reference DUT (RDUT V2) for teaching the c3D platform Software for Module c3D Software for SENS
Module c3D Software	The software for DASY8 Module SENS includes two graphical user interfaces: Module SENS: graphical user interface for control of all robot movements and cSAR3D measurements; runs on Jupyter Notebook in an Electron application. cSAR3D Software: graphical user interface for creation of measurement projects and performance of SAR measurements cSAR3D API V2: interface to control cSAR3D measurement functions externally (outside of cSAR3D graphical user interface)
Required Minimal Components (not included in the Basic Package)	The basic components of DASY8 Module c3D that are purchased seperately are: MP8I-TX2-90XL Platform including Robot DASY8 Measurement Server EOC8 1 Light-Beam Unit Quick Adapter Change System (QACSV1) DASY8 PC cSAR3D FLAT cSAR3D LEFT HEAD cSAR3D RIGHT HEAD
Upgrade	Any MP8I-TX2-90XL system can be upgraded. DASY8^3D systems can be upgraded with only a software update.
Module Compatibility	DASY8 Module SENS is fully compatible for integration with the following modules: DASY8 Module SAR DASY8 Module APD DASY8 Module mmWave DASY8 Module WPT DASY8 Module HAC DASY8 Module R&D DASY8 Module c3D cSAR3D V5.0 or higher
Standard Compatibility	Module SENS is compatible for compliance testing according to: IEC TR 63424-1 IEC/IEEE 62209-1528
Unique Features
Accurate dynamic DUT positioning Easy to use	The DASY8 robot enables accurate dynamic 3D positioning of a DUT Position accuracy: 0.2 mm Position repeatability: 0.035 mm Temporal resolution: up to 1 position per second, 3 SAR measurements / second Maximum DUT dimensions: 310 × 225 × 15 mm Maximum DUT weight: 1.5 kg The system is capable of switching between DASY8 Modules within a few seconds and is easy to learn for DASY8 and cSAR3D users.
Benefits
Easy to upgrade Enhanced Usability	The system can be upgraded from an existing DASY8 MP8I TX2-90XL system or cSAR3D system; no hardware changes are needed for existing DASY8^3D systems. Accelerated testing of reduction and compliance with a single system!
Compatibility	DASY8, cSAR3D
Product History	See product lifetime
Release Date	released
