Verification Device
Verification Device
|
|

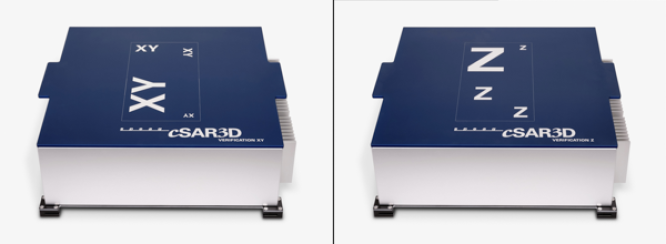

The cSAR3D Verification Device consists of two separate units: one for verifying the X/Y sensor performance and one for verifying the Z-sensor functionality.The integrated units contain signal generation, amplification, and antenna systems that illuminate the measurement array. No additional equipment is required. The target data is stored in the internal memory of each device to eliminate the possibility of operator errors. This target data is updated during the calibration process performed in SPEAG’s laboratories. |
| Applications |
Verification of cSAR3D Flat's functionality |
| Signal type |
CW (continuous wave) |
|
Size (L × W × H)
|
360 mm × 360 mm × 160 mm |
| Weight |
2.5 kg |
| Accessories | USB cable |
|
Power Supply |
Input: 120 - 230 VAC Output: 24V DC |
| Calibration |
Regular calibration is recommended for optimal performance. Each Verification Device unit is calibrated in SPEAG's ISO 17025 accredited laboratory prior to shipment. |
