Verification Sources: 6.5 – 90 GHz

Description

ISO 17025 calibrated horn antennas for system check/verification according to IEC/IEEE 63195-1

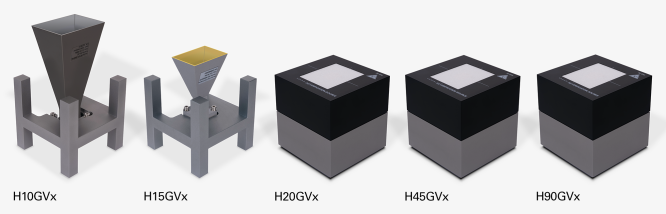

H10GVx

System verification antenna with supporting fixture.

• ISO 17025 calibrated frequency: 10 GHz at 10 mm from the antenna
• E-field polarization: linear
• Input power: max. 20W
• Connector: SMA
• Operation: requires a stable source with known forward power to perform system performance check or validation
• Weight: 700 g

H30GVx

System verification device consists of a Ka-band horn antenna with corresponding Gunn oscillator packaged within a cube-shaped housing. Power supply provided.

• ISO 17025 calibrated frequency: 30 GHz for PD/APD
• Frequency accuracy: ±100 MHz
• E-field polarization: linear
• Harmonics: -20 dBc (typ)
• Total radiated power: 14 dBm (typ)
• Power stability: 0.05 dB (after 30 min warmup)
• Power consumption: 5 W (max)
• Size: 100 x 100 x 100 mm
• Weight: 1 kg

H45GVx

System verification device consists of a U-band horn antenna with corresponding Gunn oscillator packaged within a cube-shaped housing. Power supply provided.

• ISO 17025 calibrated frequency: 45 GHz at 10 mm from the antenna (5.55 mm from the case surface)
• Frequency accuracy: ±100 MHz
• E-field polarization: linear
• Harmonics: -20 dBc (typ)
• Total radiated power: 14 dBm (typ)
• Power stability: 0.05 dB (after 30 min warmup)
• Power consumption: 5 W (max)
• Size: 100 x 100 x 100 mm
• Weight: 1 kg

H60GVx

System verification device consists of a V-band horn antenna with corresponding Gunn oscillator packaged within a cube-shaped housing. Power supply provided.

• ISO 17025 calibrated frequency: 60 GHz at 10 mm from the antenna (5.55 mm from the case surface)
• Frequency accuracy: ±100 MHz
• E-field polarization: linear
• Harmonics: -20 dBc (typ)
• Total radiated power: 20 dBm (typ)
• Power stability: 0.1 dB (after 30 min warmup)
• Power consumption: 5 W (max)
• Size: 100 x 100 x 100 mm
• Weight: 1 kg

H90GVx

System verification device consists of a W-band horn antenna with corresponding Gunn oscillator packaged within a cube-shaped housing. Corresponding power supply cable is also provided.

• ISO 17025 calibrated frequency: 90 GHz at 10 mm from the antenna (5.55 mm from the case surface)
• Frequency accuracy: ±150 MHz
• E-field polarization: linear
• Harmonics: -20 dBc (typ)
• Total radiated power: 16 dBm (typ)
• Power stability: 0.15 dB (after 30 min warmup)
• Power consumption: 5 W (max)
• Size: 100 x 100 x 100 mm
• Weight: 1 kg

P6500Vx

Coaxial-fed rectangular patch verification source.

• ISO 17025 calibrated frequency: 6.5 GHz at 2 mm from the antenna
• Operation: requires a stable source with known forward power to perform system performance check or validation
• Connector: SMA
