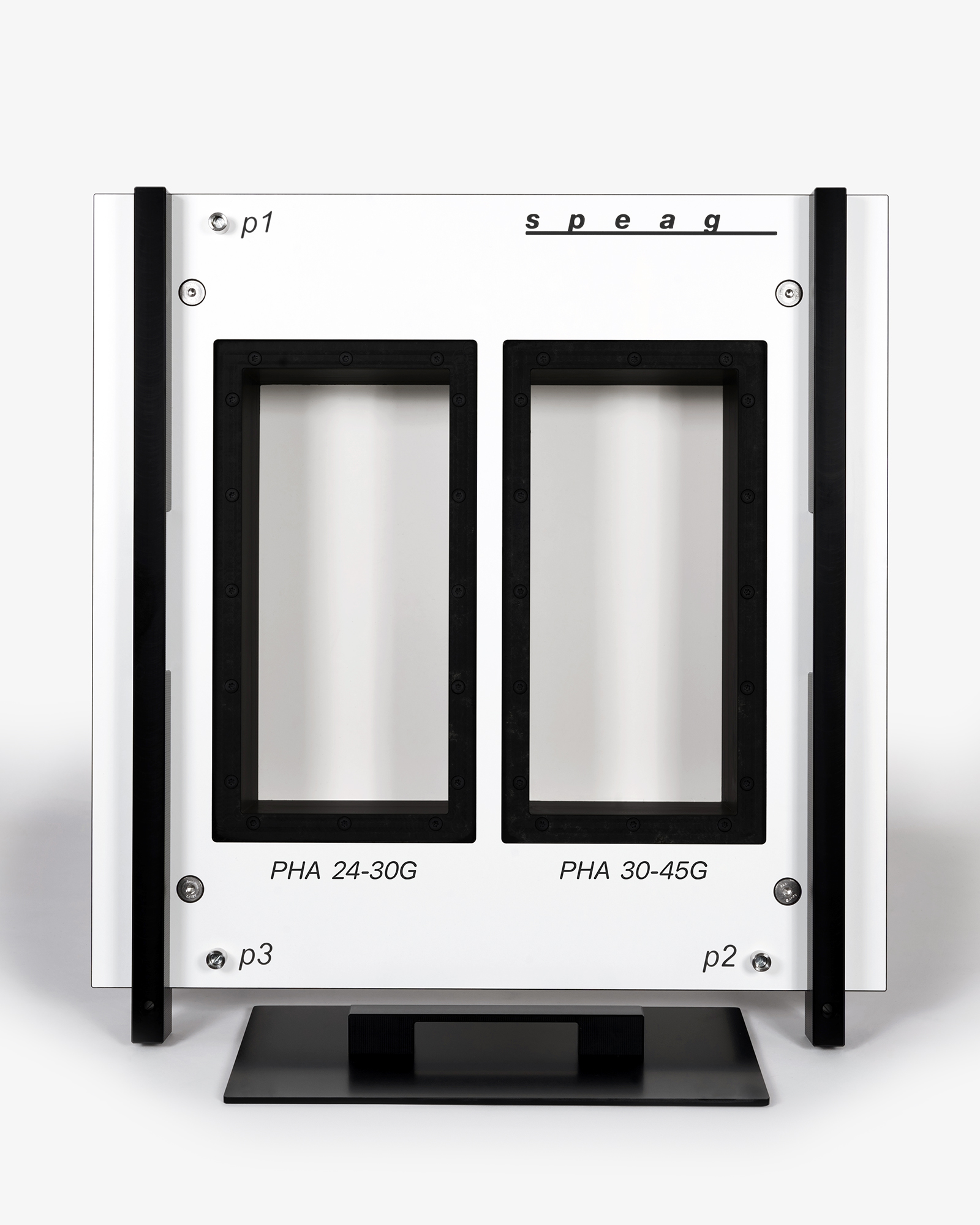

PHA24-45G APD Phantom Set
  |
The PHA24-45G phantom set consists of:
Together with the skin simulating liquids SSL24-30G V2.0 / SSL30-45G V2.0, the phantoms reliably emulate the absorption and reflection characteristics of the human skin from 24 to 45 GHz. They enable the dosimetric evaluation of the APD of millimeter-wave devices in the 5 cm × 10 cm test area. A crosshair at the bottom of the phantom guides the positioning of devices under test below the phantom. A cover prevents evaporation of the liquid. Reference markings on the phantom allow the complete setup of all predefined phantom positions and measurement grids by teaching three points with the robot. |
| Material | PREPERM™, ROHACELL®, PET |
| Liquid Compatibility | The phantom shell is compatible with SPEAG's skin tissue-simulating liquids. Use of other liquids may render the phantom warranty void (see note or consult SPEAG support). |
| Shell Thickness | 2 mm (spacer) + 1mm (shell) ± 0.1 mm |
|
Dimensions
|
Length: 500 mm Width: 500 mm Height: 300 mm |
| Filling Volume | approx. 1 liter |
| Support |
DASY8: half-size platform slot |
| Accessories | Mounting Devices and Adaptors |
