cSAR3D SYSTEM COMPONENTS

SPEAG provides all components necessary for high-quality SAR measurements for R&D testing, QA testing, and compliance evaluation.

CAMERA



CAMO

CAMO

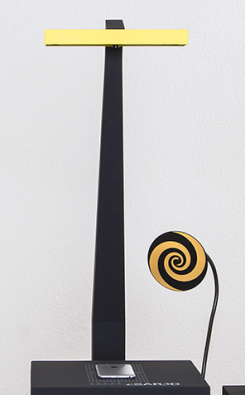

Overhead camera module that photographs the device during SAR testing. The cSAR3D software overlays the image on the SAR distribution.

Detailed specifications: CAMO

VERIFICATION & VALIDATION


POWERSOURCE1

POWERSOURCE1

Stable and lightweight RF power source for convenient system verification and validation measurements. Generates CW signal at frequencies from 600 to 6000 MHz. Connects directly to antennas via coaxial connector.

Detailed specifications: POWERSOURCE1

User video: cSAR3D Repeatability

Verification Kit

Verification Kit

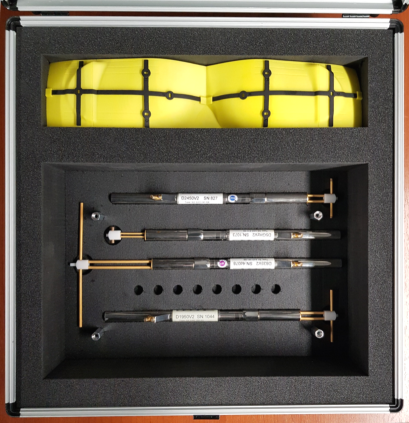

Set of calibrated dipole sources and accessories to verify the system performance of cSAR3D prior to conducting measurements on wireless devices.

Detailed specifications: Verification Kit

AVALSET-3

AVALSET-3V1

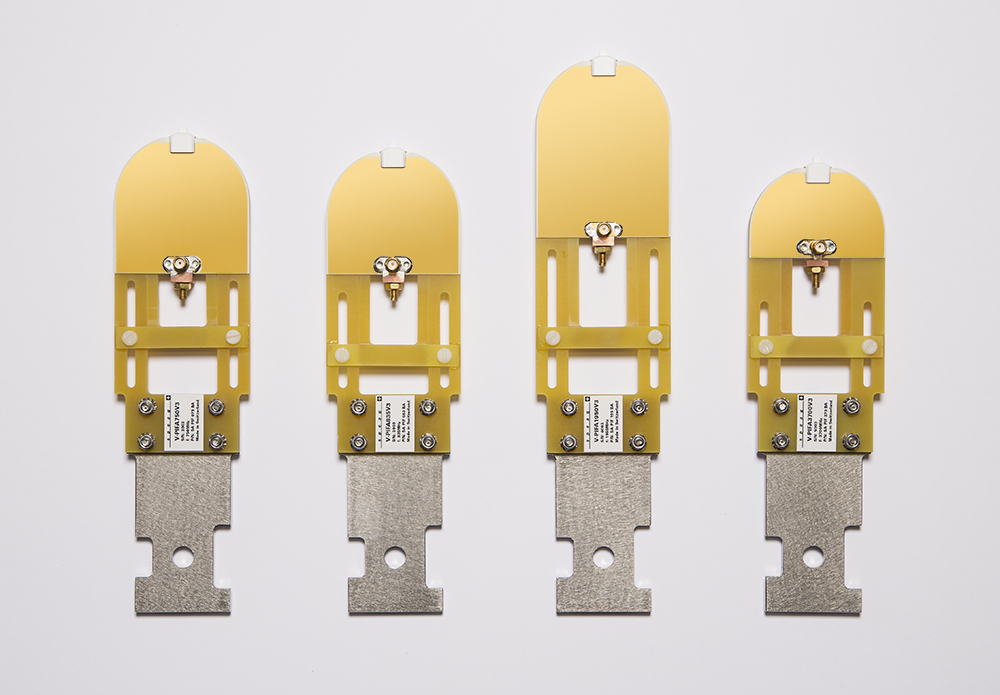

Full set of calibrated antennas and accessories defined by IEC 62209-3 to conduct system validation of any vector measurement-based system.

Detailed specifications: AVALSET-3V1

VDS

VDSV1

Rigid stand for hands-free positioning of system check dipole sources on cSAR3D Flat and cSAR3D QUAD.

Detailed specifications: Verification Dipole Stand

VAH

VAHV1

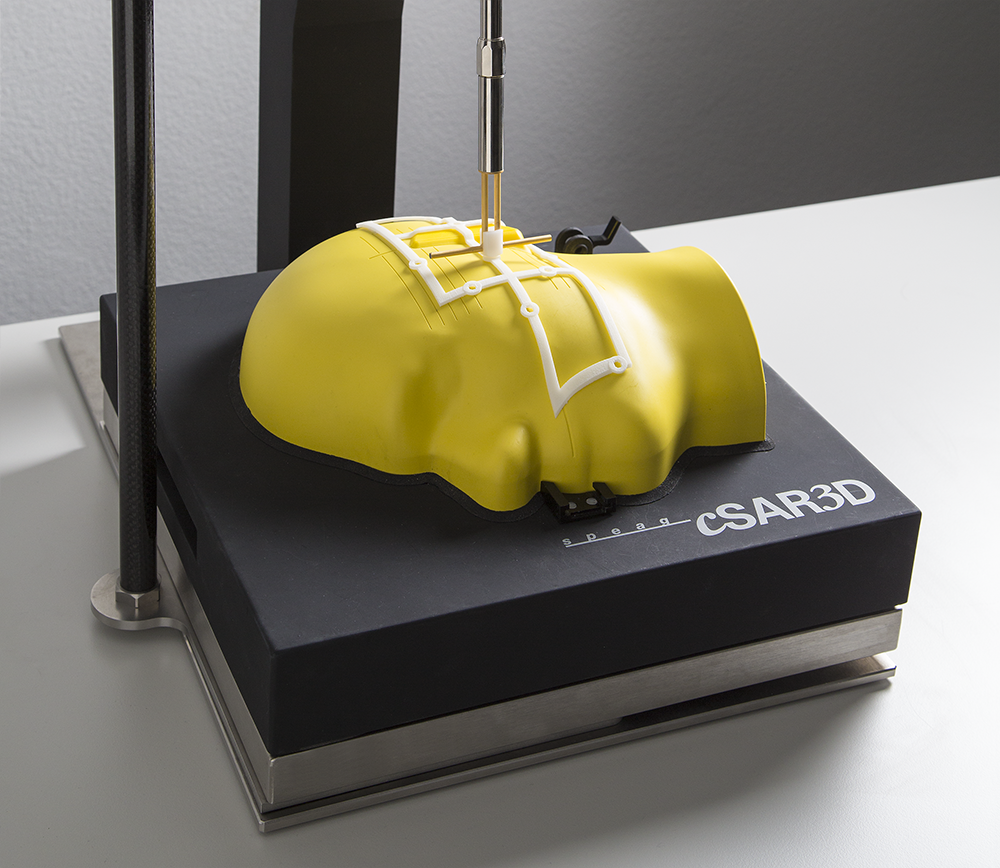

Articulated holder for hands-free positioning of system check sources and validation sources at all locations on cSAR3D Flat and cSAR3D Head.

Detailed specifications:  Verification Antenna Holder

CONNECTIVITY
MAIA

MAIA

Modulation analysis interface to validate the communication settings of the wireless device signal. Enables the determination of the linearization parameters.

Detailed specifications: MAIA

ANT

ANT

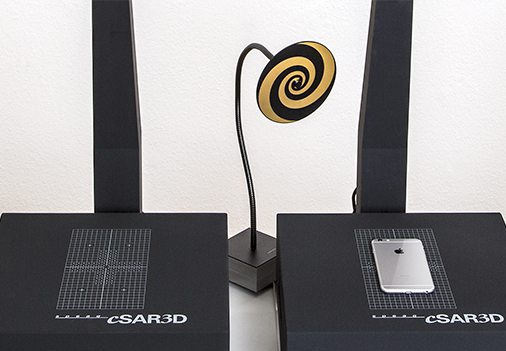

Ultra-wideband omni-directional antenna (695 - 6000 MHz) that connects to base station simulators for automated call handling of the wireless device.

Detailed specifications: ANT

DEVICE POSITIONING
Mask

15° MASK

Rigid and low-permittivity masks that enable device positioning at 15° tilt position on cSAR3D Left and Right Heads.

Detailed specifications: 15º Mask for Head Phantoms

Spacer Set

SPACER SET

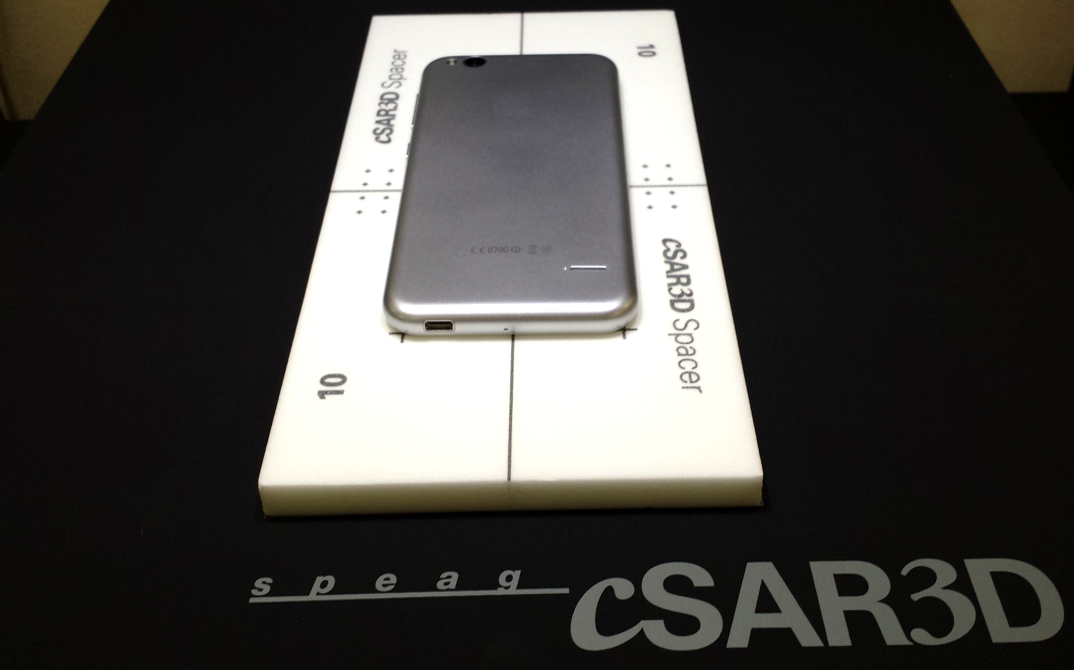

Stackable spacers for positioning of wireless devices at fixed distances to the cSAR3D Flat and cSAR3D QUAD. The spacers come with certificates verifying the thickness to within ±0.1 mm tolerance.

Detailed specifications: Spacers for Flat Phantoms

Tablet Positioner

TABLET POSITIONER

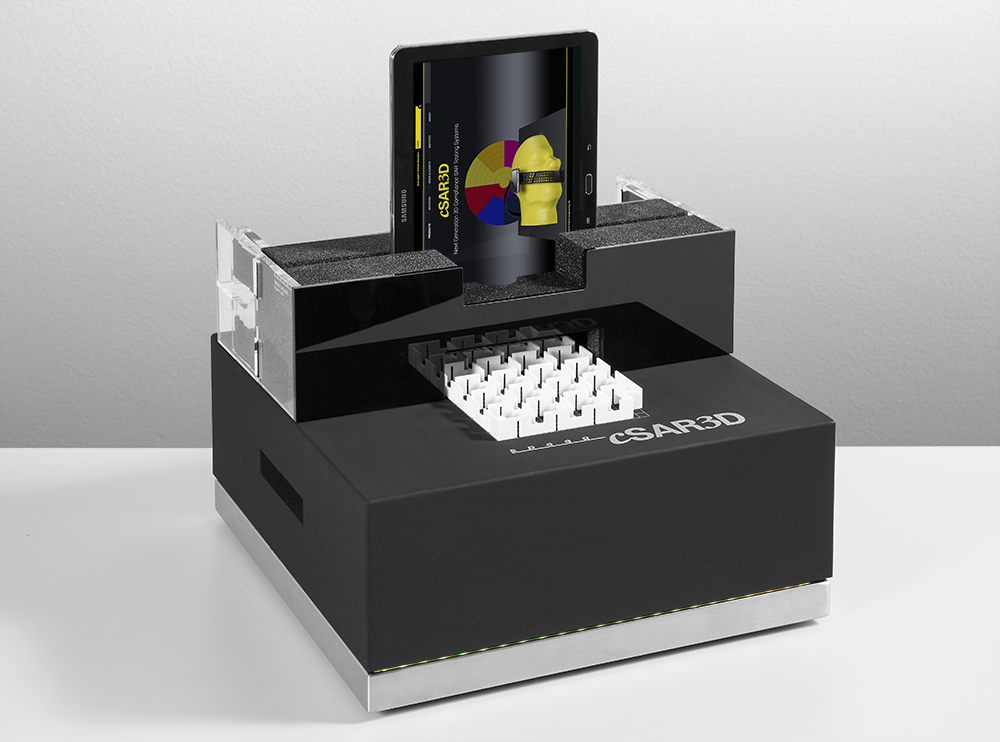

Hands-free positioning of wireless devices (including tablets and mobile phones, up to 340 mm wide) on cSAR3D Flat and cSAR3D QUAD. Works together with the spacer set to hold the device in fixed positions so that all sides of the device can be tested.

Detailed specifications: Tablet Positioner

Laptop Positioner

LAPTOP POSITIONER

Hands-free positioning of large wireless devices (including laptops, up to 600 mm wide) on cSAR3D QUAD, enabling SAR testing of all six sides of the device.

Detailed specifications: Laptop Positioner
