HPC SOLUTION

SEMCAD X Matterhorn offers high-performance computing (HPC) for investigation of complex and realistic models. Multi-threaded execution for modeling, meshing, voxeling, and postprocessing enables parallel processing of heavy tasks without disturbing the workflow. A fully integrated centralized task manager efficiently manages all computationally intensive tasks on the local machine or in the cloud. Two sets of CUDA-based libraries for GPU acceleration, Acceleware and SPEAG CUDA, are provided.



SEMCAD X Matterhorn features the fastest available GPU-enabled EM-FDTD and EM-FEM solvers (QS). The MPI parallelization-based FEM solver optimally uses multi-core processors, clusters, and supercomputers to guarantee extreme performance for demanding tasks. A unified interface supports cloud computing on any of the major providers, e.g., Amazon or Google.





Key Features: Acceleware

  • Advanced libraries for EM-FDTD
  • Unique FDTD/GPU subgridding scheme (structure-adaptive)
  • Support for this sheets, dispersive media and lossy metals
  • Multi-GPU support





Key Features: CUDA

  • Libraries for EM-FDTD
  • Multi-GPU support



Key Features: MPI

  • Libraries for FEM-based EM-QS
  • MPI/OpenMP support of various SEMCAD X Matterhorn embedded Framework features


Supported GPUs

  • NVIDIA GeForce 16 and 20 series series (Turing architecture)
    • GeForce GTX 1650, GTX 1660, GTX 1660 Ti
    • GeForce RTX 2060, RTX 2070, RTX 2080, RTX 2080 Ti
    • NVIDIA Titan RTX
  • NVIDIA Volta series
    • NVIDIA TITAN V
    • NVIDIA Tesla V100
  • NVIDIA GeForce 10 series (Pascal architecture):
    • GeForce GTX 1050, GeForce GTX 1050 Ti, GeForce GTX 1060, GeForce GTX 1070, GeForce GTX 1080, GTX 1080Ti
    • NVIDIA Titan X, Titan Xp
    • NVIDIA P5000, P6000, P620
    • NVIDIA Tesla P100
  • NVIDIA GeForce 900 series (Maxwell architecture):
    • First generation Maxwell: GeForce GTX 750Ti, GeForce GTX 750
    • Second generation Maxwell: GeForce GTX TITAN X, GeForce GTX 980, GeForce GTX 980Ti, GeForce GTX 970, GeForce GTX 960, GeForce GTX 960, GeForce GTX 950
  • NVIDIA K-series (Kepler architecture):
    • NVIDIA Kepler K10, K20/K20X, K40 and K80.
    • NVIDIA Quadro K6000
  • NVIDIA 20 series (Fermi architecture):
    • NVIDIA Tesla C2050 or C2070/C2075 card
    • NVIDIA Tesla S2050 or S2070/S2075 server form factor
    • NVIDIA M2090, M2070, M2050
    • GPU clusters of NVIDIA Tesla S2070 form factors

Hardware older than NVIDIA series 10 is no longer supported.

 Supported OS

  • Windows 8/8.1/10
  • Windows Server 2008/ 2012
  • Linux RedHat 7 and CentOS

Performance

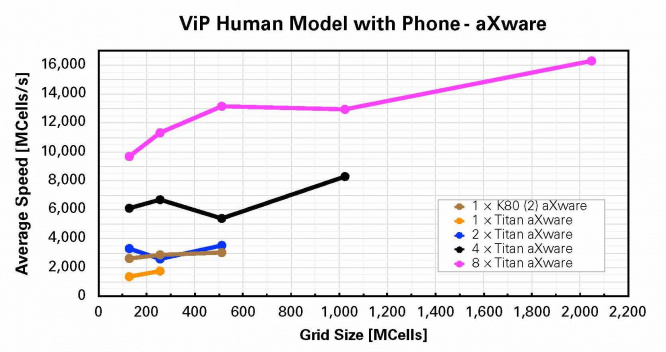

Benchmark 1: ViP human model with a mobile phone (with patch array antenna) next to his head.

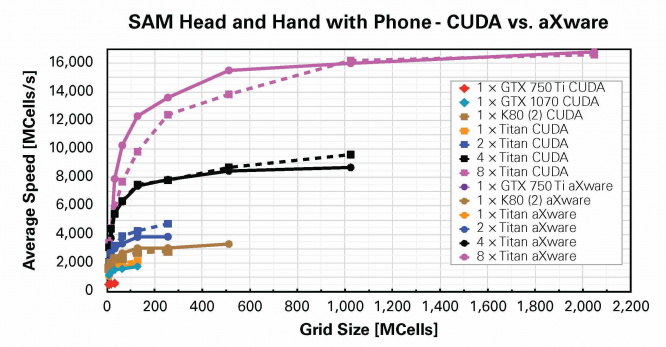

Benchmark 2: SAM Head and Hand phantoms with a mobile phone.



Additional Benchmarks: Small Computational Domain
