V&V CLA for SAR System: 6 MHz – 220 MHz

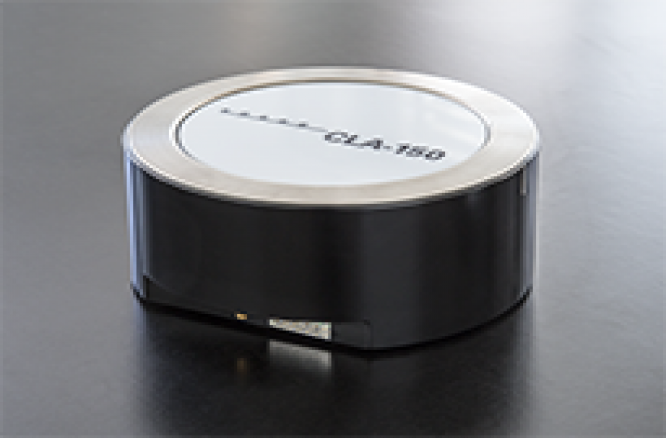

Confined Loop Antennas (CLA) are system validation antennas used to perform system checks with tissue simulating media at 6 – 220 MHz prior to specific absorption rate evaluations. The source is a resonant loop antenna integrated in a metallic structure to isolate the resonant structure from the environment.

IEC 62209-2

IEC/IEEE 62209-1528

CLA-6

Calibrated at:
Return loss:
Power capability:
Diameter × height:

6 MHz
>10 dB
>10 W continuous
222 × 95 mm

CLA-13

Calibrated at:
Return loss:
Power capability:
Diameter × height:

13 MHz
>10 dB
>10 W continuous
222 × 95 mm

CLA-30

Calibrated at:
Return loss:
Power capability:
Diameter × height:

30 MHz
>10 dB
>10 W continuous
222 × 95 mm

CLA-64

Calibrated at:
Return loss:
Power capability:
Diameter × height:

64 MHz
>10 dB
>10 W continuous
222 × 95 mm

CLA-128

Calibrated at:
Return loss:
Power capability:
Diameter × height:

128 MHz
>10 dB
>10 W continuous
222 × 95 mm

CLA-150

Calibrated at:
Return loss:
Power capability:
Diameter × height:

150 MHz
>10 dB
>10 W continuous
222 × 95 mm

CLA-220

Calibrated at:
Return loss:
Power capability:
Diameter × height:

220 MHz
>10 dB
>10 W continuous
222 × 95 mm
