TDS RFoF1P Transducer

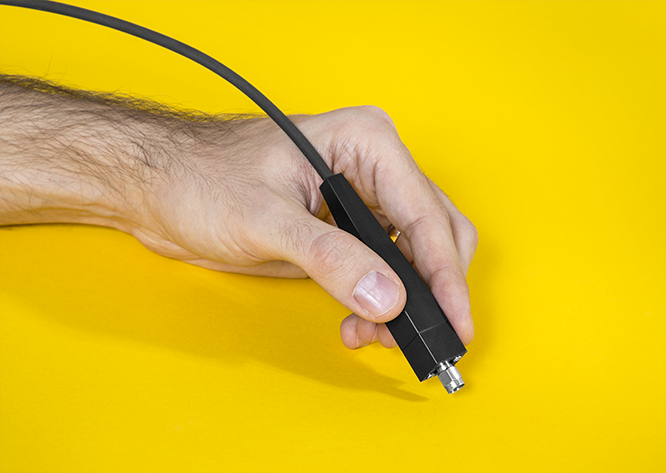

The RFoF1P is a microphotonic electrically fully isolated RF-over-fiber transducer operating in the 100 kHz – 10 GHz frequency range. For standalone applications, each RF-over-fiber transducer is delivered with an 8 m (other lengths are available on request) rugged fiber-optic cable attached directly to the transducer. All SPEAG RFoF1P transducers are individually calibrated and characterized in SPEAG’s calibration laboratory.
Frequency Range 100 kHz – 10 GHz
Typical Gain

0 dB @ 1 GHz

Gain Flatness
± 3 dB
VSWR better than 1.925:1
DANL

<-105 dBm/Hz (100 kHz – 100 MHz)

<-120 dBm/Hz (100 MHz – 10 GHz)

Max. RF Input Level

0 dBm

Probe Size 16 × 16 × 90 mm
RF connector
Optimized SMA jack
Optical Probe ID Integrated in the shutter key handle of the RF-over-fiber transducer
Fiber-Optic Interconnect

8 m (other lengths are available on request) fiber-optic patch cord fitted to the RF-over-fiber probe
MU8-connector integrated in the shutter key

Fiber-Connector Mating Cycles 500 – 1000 (fiber patch cord can be serviced by SPEAG, increasing total mating cycles to >25,000)
Data Acquisition Systems

SPEAG 1RU1TDS Standalone
SPEAG 3RU1TDS Standalone

SPEAG 1RU1TDS PXI
SPEAG 3RU1TDS PXI

SPEAG OH4VNA RU

LASER Safety Classification IEC60825-1 2007 Class 1
US FDA CDRH registration
  *RFoF1P transducers can be customized and miniaturized further for OEM applications. Please contact info@speag.swiss for more information.
